Uniview

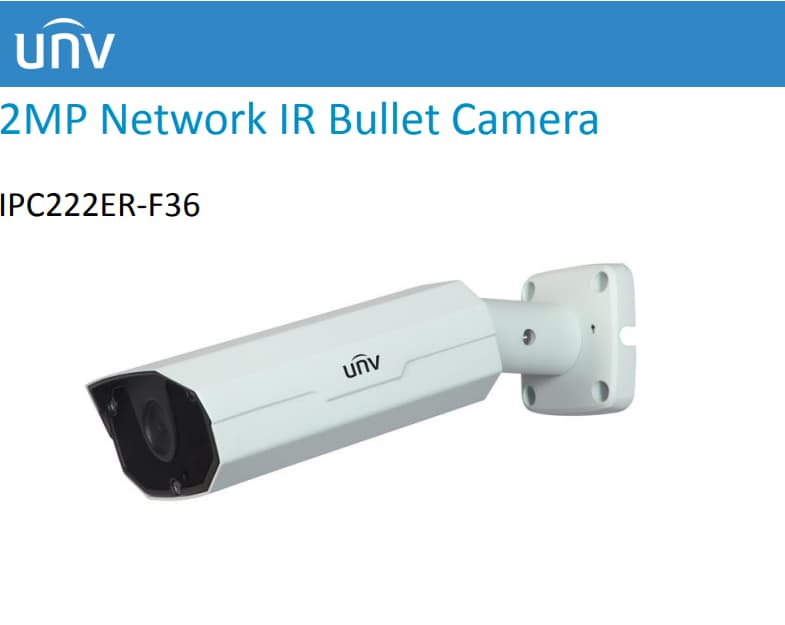

UNV IPC222ER-F36 2.0MP / 3.6mm IR BULLET IP CAMERA
Tk
4500
- Metal Housing
- 2 MP
- 3.6mm Lens
- Smart IR , up to 30m IR distance
IP Camera
Optics
• Day/night functionality
• Lowlight surveillance
• 3D DNR (Digital Noise Reduction)
• Optical glass window with higher light transmittance
• Smart IR , up to 30 m (98 ft) IR distance
• IR anti-reflection window to increase the infrared transmittance
Compression
• Triple streams
• ROI (Region of Interest)
• 9:16 corridor mode
• Customized OSD
Network
• ONVIF Conformance
Structure
• Support PoE power supply
• Wide temperature range: -35°C to 60°C (-31°F to 140°F)
• Wide voltage range of ±25%
• IP66
Camera
Sensor: 1/2.8", 2 Megapixel, progressive scan CMOS
Shutter: Auto/Manual, 1/6~1/8000 s
Lens: [email protected]; Angle of View (H): 85°
Day/Night: IR-cut filter with auto switch (ICR)
IR Range: Up to 30m (98ft) IR range
Min. Illumination:
Colour: 0.06 Lux (F1.8, AGC ON)
0 Lux with IR
WDR: Digital
S/N: >52dB
Image Rotation: Supported
Video
Max. Resolution: 1920 × 1080
Video Compression: H.264, MJPEG
Frame Rate: 1080P (1920*1080): Max. 30 fps; 720P (1280*720): Max. 30 fps; D1 (720*576): Max. 25 fps
9:16 Corridor Mode: Supported
ROI(Region of Interest): Supported
Video Streaming: Triple
OSD: Up to 8 OSDs
Privacy Mask: Up to 4 areas
Audio
Audio Compression: G.711
Two-way audio: Supported
Network
Protocols: L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SNMP, SIP, 802.1x
Compatible Integration: ONVIF, API
Interface
Audio I/O:
Audio cable
Input: impedance 35 kΩ; amplitude 2 V [p-p]
Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O: 1/1
Network: 10M/100M Base-TX Ethernet
General
Power:
12 V DC or PoE (IEEE802.3 af)
Power consumption: 3.5 W (7.5W with IR on)
Dimensions (L × W × H): 187.8 ×76 ×44 mm (7.4” × 3.0” × 1.7”)
Weight: 0.58 kg (1.28 lb)
Working Environment: -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Ingress Protection: IP66
