Uniview

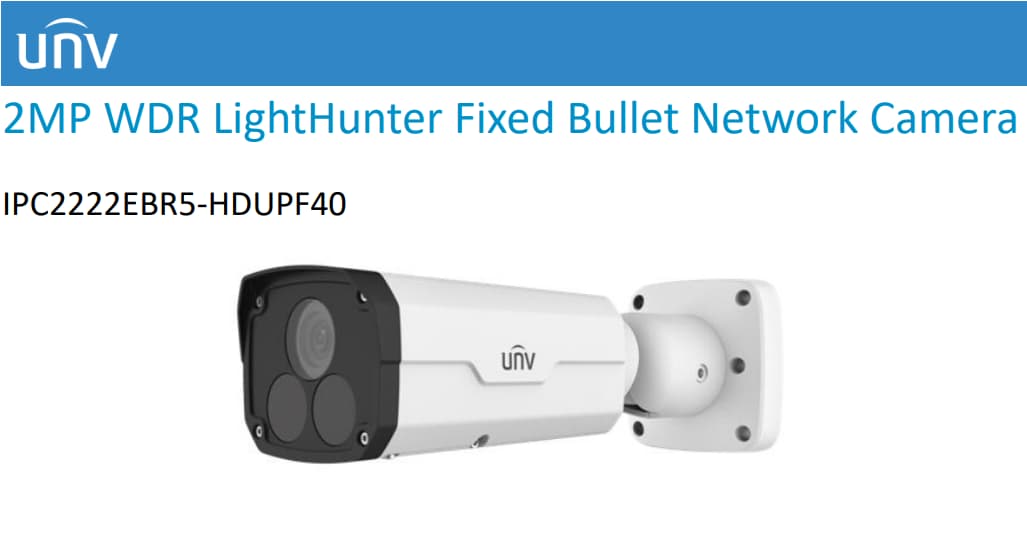

UNV IPC2222EBR5-HDUPF40 2.0MP / 4mm WDR Starlight Fixed Bullet IP Camera
Out Of Stock
- Metal Housing
- 2 MP
- 4.0mm Lens
- Ultra265,H.265, H.264, MJPEG
IP Camera
Optics
• LightHunter
• 60fps Frame Rate
• Day/night functionality
• Smart IR, up to 50m (164ft) IR distance
• IR anti-reflection window to increase the infrared transmittance
• 120dB TRUE WDR
• 2D/3D DNR (Digital Noise Reduction)
Compression
• Ultra265, H.265, H.264, MJPEG
• Triple streams
• ROI (Region of Interest)
• 9:16 corridor format
Network
• ONVIF Conformance
Structure
• Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)
• Wide voltage range of ±25%
• IK10 vandal resistant
• IP67
• 3-Axis
Camera
Sensor: 1/2.8″, 2.0 megapixel, progressive scan, CMOS
Lens: [email protected]
DORI Distance
| Lens (mm) | Detect (m） | Observe (m） | Recognize (m） | Identify (m） |
| 4.0 | 64.3 | 25.7 | 12.9 | 6.4 |
| 6.0 | 96.4 | 38.6 | 19.3 | 9.6 |
Angle of View (H): 78.7°
Angle of View (V): 42.8°
Angle of View (O): 96.8°
Adjustment angle: Pan: 0°~ 360°, Tilt: 0°~ 90°, Rotate: 0°~ 360°
Shutter: Auto/Manual, 1 ~ 1/100000s
Minimum Illumination:
Colour: 0.001Lux (F1.6, AGC ON)
0Lux with IR on
Day/Night: IR-cut filter with auto switch (ICR)
S/N: >52dB
IR Range: Up to 50m (164ft) IR range
wavelength: 850nm
IR On/Off: Control Auto/Manual
Defog: Digital Defog
WDR: 120dB
Video
Video Compression: Ultra265, H.265, H.264, MJPEG
H.264 code profile: Baseline profile, Main Profile, High Profile
Frame Rate:
Main Stream: 2MP (1920*1080), Max 60fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
Video Bit Rate: 128 Kbps~16 Mbps
9:16 Corridor Mode: Supported
OSD: Up to 8 OSDs
Privacy Mask: Up to 8 areas
ROI: Up to 8 areas
White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction: 2D/3D DNR
Smart IR: Support
Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping: Support
HLC: Support
BLC: Support
Storage
Edge Storage: Micro SD, up to 256GB
Network Storage: ANR, NAS(NFS)
Network
Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API
Client:
EZStation
EZView
EZLive
Web Browser:
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Network: 1 RJ45 10M/100M Base-TX Ethernet
Certifications
Certifications:
CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power:
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 7.5W
Dimensions (L × W × H): 253.4 × 86 × 71.7mm (9.98” × 3.4” × 2.8”)
Net Weight: 1.0kg (2.2lb)
Material: Metal
Working Environment: -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment: -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge protection: 6KV
Ingress Protection: IP67
Vandal Resistant: IK10
