Uniview

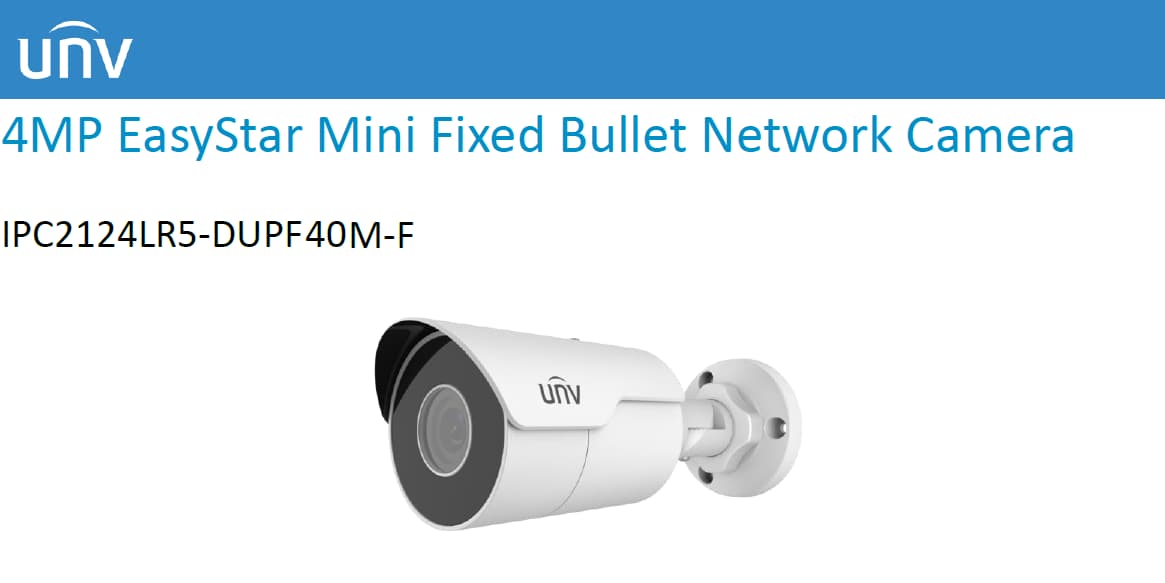

UNV IPC2124LR5-DUPF40M-F 4.0MP/4mm/50m IR EASYSTAR FIXED BULLET IP CAMERA
Tk
7200
- Metal Housing
- Smart IR, up to 50m (164ft) IR distance
- IP67
- 1 YEAR WARRANTY
IP Camera
-
• Metal Housing
• Smart IR , up to 50m IR distance
• Ultra 265/H.265/H.264/MJPEG
• 9:16 corridor format
• Angle of view(H): 83.7°
• Edge Storage : Micro SD, up to 256GB
• Built-in Mic
• IP67
Camera
Sensor: 1/3", 4.0 megapixel, progressive scan, CMOS
Lens: [email protected]
DORI Distance
| Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8 | 63 | 25.2 | 12.6 | 6.3 |
| 4.0 | 90 | 36 | 18 | 9 |
Angle Of View (H): 79.7°
Angle Of View (V): 41.6°
Angle Of View (O): 98.0°
Adjustment Angle
Pan: 0° ~ 360°
Tilt: 0° ~ 90°
Rotate: 0° ~ 360°
Shutter: Auto/Manual, 1 ~ 1/100000s
Minimum Illumination:
Colour: 0.005Lux ( F1.6, AGC ON)
0Lux with IR
Day/Night: IR-cut filter with auto switch (ICR)
Digital Noise Reduction: 2D/3D DNR
S/N: >52dB
IR Range: Up to 50m (164ft) IR range
Wavelength: 850nm
IR On/Off Control: Auto/Manual
Defog: Digital Defog
WDR: 120db
Video
Video Compression: Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile: Baseline profile, Main Profile, High Profile
Frame Rate:
Main Stream: 4MP (2688*1520), Max 25fps;
Sub Stream: 720P (1280*720), Max 25fps Video Bit Rate 128 Kbps~16 Mbps OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas
ROI: Up to 4 areas
Motion Detection: Up to 4 areas
White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction: 2D/3D DNR
Smart IR: Support
Flip: Normal/Vertical/Horizontal/180°
Dewarping: Support
HLC: Supported
BLC: Supported
Network
Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
Compatible Integration: ONVIF (Profile S, Profile T), API
Client:
EZStation
EZView
EZLive
Web Browser:
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Network: 10/100M Base-TX Ethernet
Certifications
Certifications:
CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power:
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 6W
Dimensions(L × W × H): 191.3×72.6×70.9mm (7.5”×2.9”×2.8”)
Net Weight: 0.5kg (1.1lb)
Material: Metal
Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection: 2KV
Ingress Protection: IP67
