Uniview

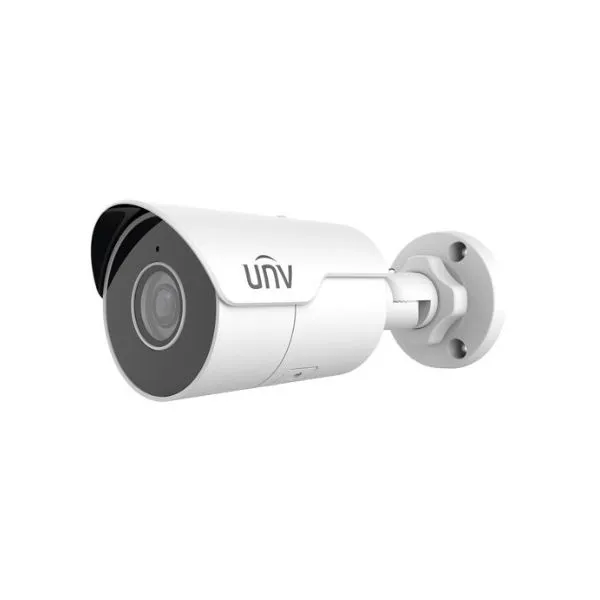

UNV IPC2124LE-ADF40KM-G 4.0MP/4mm/50m IR BULLET IP CAMERA W/SD CARD SLOT
Out Of Stock
- Metal Housing
- Smart IR, up to 50m (164ft)
- Ultra 265/H.265/H.264/MJPEG
- Angle of view(H): 89.2°
IP Camera
Quantity:
- • High quality image with 4MP, 1/3"CMOS sensor
- • 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
- • Ultra 265, H.265, H.264, MJPEG
- • Easystar technology ensures high image quality in low illumination environment
- • 120dB true WDR technology enables clear image in strong light scene
- • Support 9:16 Corridor Mode
- • Built-in Mic
- • Smart IR, up to 50m (164ft) IR distance
- • Supports 256 G Micro SD card
- • IP67 protection
- • Support PoE power supply
- • 3-Axis
Camera
Sensor: 1/3", 4.0 megapixel, progressive scan, CMOS
Minimum Illumination:
Support Easystar: Colour: 0.003 lux ( F1.6, AGC ON)
0Lux with IR
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 ~ 1/100000s
Adjustment Angle:
Pan: 0° ~ 360°
Tilt: 0° ~ 90°
Rotate: 0° ~ 360°
S/N: >56dB
WDR: 120dB
Lens
Lens Type: 4.0mm @F1.6
Iris: Fixed
Field of View (H): 83.7°
Field of View (V): 44.9°
Field of View (D): 89.2°
DORI
DORI Distance
DORI Distance
| Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8 | 63.0 | 25.2 | 12.6 | 6.3 |
| 4.0 | 90.0 | 36.0 | 18.0 | 9.0 |
Illuminator
IR Range: Up to 50m (164ft) IR range
Wavelength: 850nm
IR On/Off Control: Auto/Manual
Video
Video Compression: Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile: Baseline profile, Main profile, High profile
Frame Rate:
Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps;
Video Bit Rate: 128 Kbps~16 Mbps
U-code: Supported
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas
ROI: Up to 8 areas
Video stream: Dual streams
White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction: 2D/3D DNR
Smart IR: Support
Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
HLC: Supported
BLC: Supported
Defog: Digital Defog
Events
Basic Detection: Cross line, intrusion(based on human body detection),motion detection, Ultra motion detection, tampering alarm, audio detection
General Function: Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication
Audio
Audio Compression: G.711U, G.711A
Audio Bitrate: 64 Kbps
Two-way Audio: N/A
Suppression: Supported
Sampling Rate: 8KHZ
Storage
Edge Storage: Micro SD, up to 256GB
Network Storage: ANR, NAS(NFS)
Network
Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP
Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API , SDK
User/Host: Up to 32 users. 2 user levels: administrator and common user
Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client:
EZStation
EZView
EZLive
Web Browser:
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/O: N/A
Alarm I/O: N/A
Serial Port: N/A
Built-in Mic: Support
Built-in Speaker: N/A
WIFI: N/A
Network: 1 * RJ45 10M/100M Base-TX Ethernet
Video Output: N/A
Certifications
EMC:
CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety:
CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection: IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
Power:
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 6.0W
Power Interface: Ø 5.5mm coaxial power plug
Dimensions(L × W × H): 190×73×71mm (7.5”×2.9”×2.8”)
Weight: 0.45kg (0.99lb)
Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection: 4KV
Reset Button: N/A
