Uniview

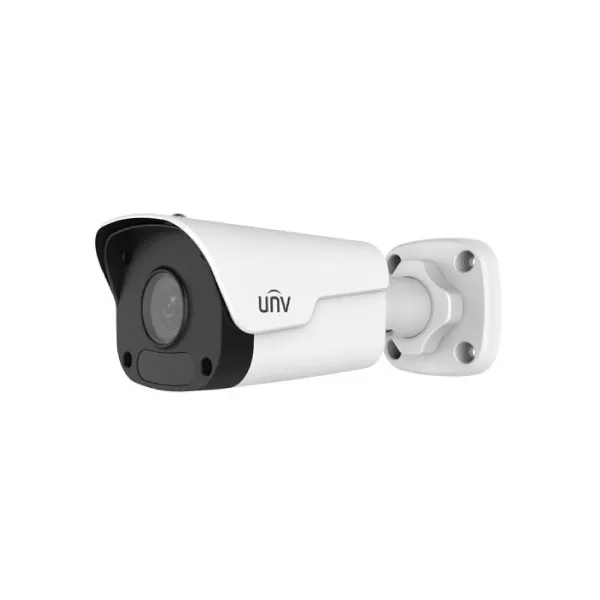

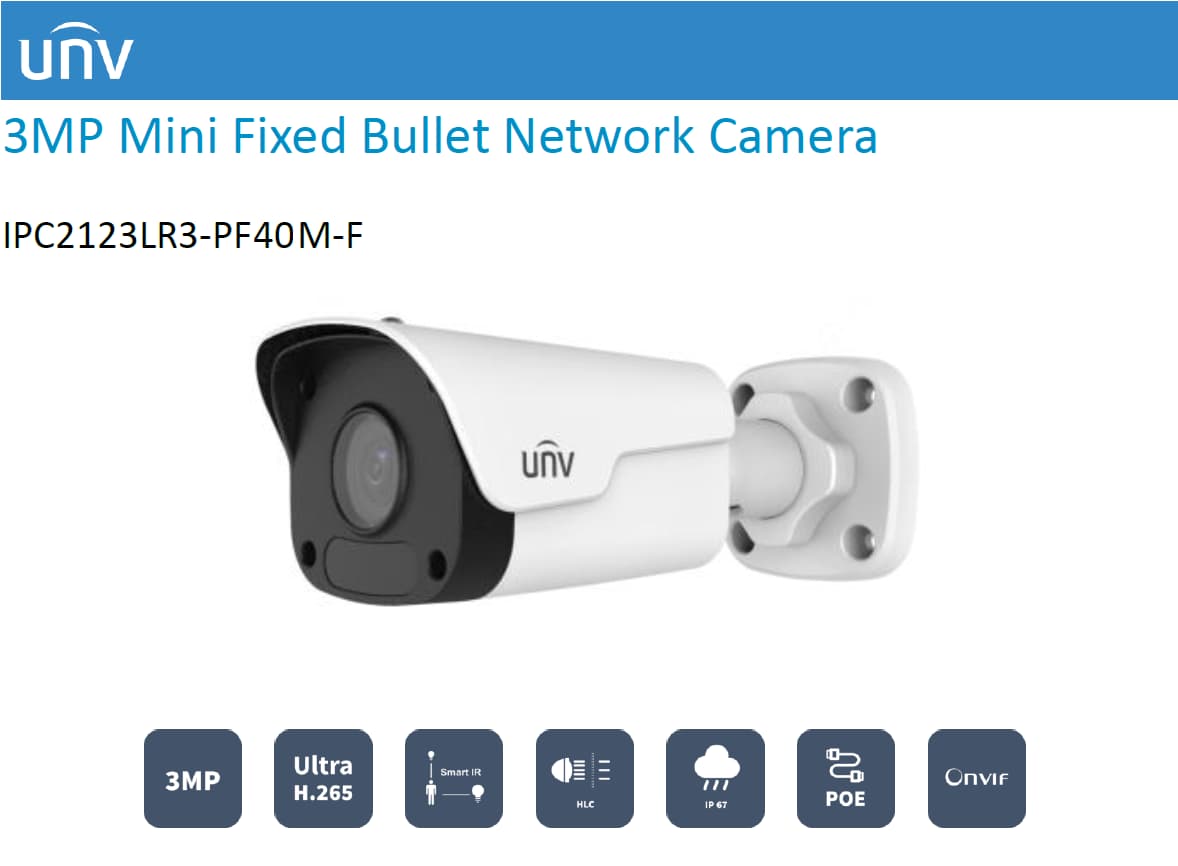

UNV IPC2123LR3-PF40M-F 3.0MP/4mm/30m IR RANGE BULLET IP CAMERA
Tk
4950
Metal Housing
Smart IR , up to 30m IR distance
2KV Surge Protection
1 Year Warranty
IP Camera
Key Features
Optics
• Day/night functionality
• Smart IR, up to 30m (98ft) IR distance
• 2D/3D DNR (Digital Noise Reduction)
Compression
• Ultra 265, H.265, H.264
• ROI (Region of Interest)
Network
• ONVIF Conformance
Structure
• Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
• Wide voltage range of ±25%
• IP67
• 3-Axis
Camera
Sensor: 1/2.7", 3.0 megapixel, progressive scan, CMOS
Lens: [email protected]
DORI Distance
| Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8 | 50.4 | 20.2 | 10.1 | 5.0 |
| 4.0 | 72 | 28.8 | 14.4 | 7.2 |
Angle of view (H): 86.9°
Angle of View (V): 44.5°
Angle of View (O): 106.9°
Adjustment angle: Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°
Shutter: Auto/Manual, 1 ~ 1/100000s
Minimum Illumination:
Colour: 0.01Lux ( F2.0, AGC ON)
0Lux with IR
Day/Night: IR-cut filter with auto switch (ICR)
Digital noise reduction: 2D/3D DNR
S/N: >52dB
IR Range: Up to 30m (98ft) IR range
Wavelength: 850nm
IR On/Off Control: Auto/Manual
Defog: Digital Defog
WDR: DWDR
Video
Video Compression: Ultra 265, H.265, H.264
H.264 code profile: Baseline profile, Main Profile, High Profile
Frame Rate:
Main Stream: 3MP (2304*1296), Max 20fps;
Sub Stream: 4CIF (704*576), Max 20fps
Video Bit Rate: 128 Kbps~6 Mbps
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas
ROI: Up to 8 areas
Motion Detection: Up to 4 areas
White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction: 2D/3D DNR
Smart IR: Support
Flip: Normal/Vertical/Horizontal/180°
Dewarping: NA
HLC: Supported
BLC: Supported
Network
Protocols: IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP
Compatible Integration: ONVIF (Profile S, Profile T), API
Client:
EZStation
EZView
EZLive
Web Browser: Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Interface
Network: 10/100M Base-TX Ethernet
Certifications
Certifications:
CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power:
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 4W
Dimensions (Ø x H): 167.3 × 62.9 × 62.7mm (6.6” × 2.5” × 2.5”)
Net Weight: 0.37kg (0.81lb)
Material: Metal
Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection: 2KV
Ingress Protection: IP67
