Uniview

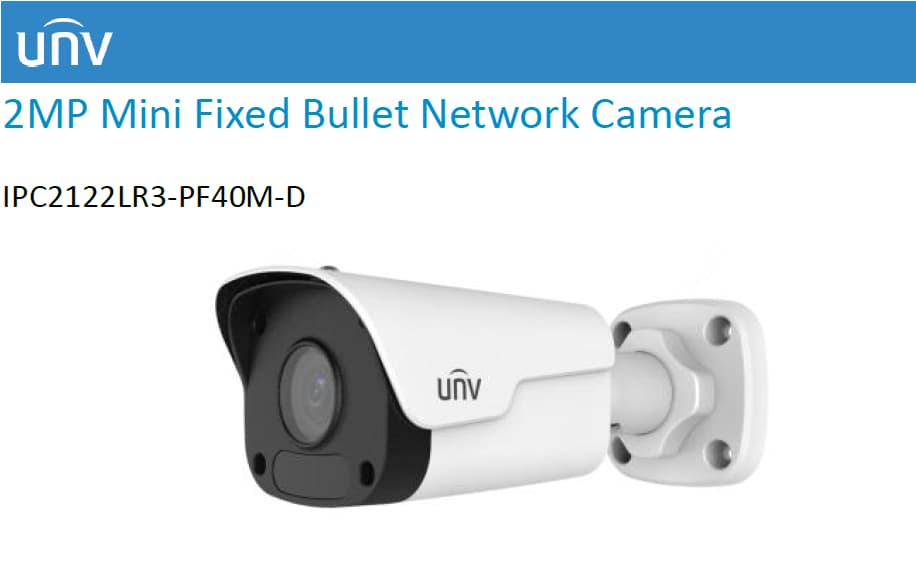

UNV IPC2122LR3-PF40M-D 2.0MP / 4mm IR BULLET IP CAMERA

Out Of Stock

Metal Housing
Smart IR , up to 30m IR distance
Ultra 265, H.265, H.264, MJPEG
Angle of view(H): 86.5°

IP Camera

Description
Specification

Features

• Day/night functionality

• Smart IR, up to 30m (98ft) IR distance

• Optical glass window with higher light transmittance

• IR anti-reflection window to increase the infrared transmittance

• 2D/3D DNR (Digital Noise Reduction)

• Ultra 265, H.265, H.264, MJPEG

• ROI (Region of Interest)

• ONVIF Conformance

• Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)

• Wide voltage range of ±25%

• IP67

• 3-Axis

Camera

Sensor: 1/2.7", 2.0 megapixel, progressive scan, CMOS

Lens: [email protected]

DORI Distance

Lens (mm)	Detect (m)	Observe (m)	Recognize (m)	Identify (m)
4.0	66.7	26.7	13.3	6.7
6.0	90	36	18	9

Angle of View (H): 86.5°

Angle of View (V): 44.1°

Angle of View (O): 106.4°

Adjustment angle: Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°

Shutter: Auto/Manual, 1 ~ 1/100000s

Minimum Illumination:

Colour: 0.02Lux (F2.0, AGC ON)

0Lux with IR on

Digital noise reduction: 2D/3D DNR

Day/Night: IR-cut filter with auto switch (ICR)

S/N: >52dB

IR Range: Up to 30m (98ft) IR range

WDR: DWDR

Video

Video Compression: Ultra 265, H.265, H.264, MJPEG

H.264 code profile: Baseline profile, Main Profile

Frame Rate:

Main Stream: 1080P (1920*1080), Max 30fps;

Sub Stream: 720P (1280*720), Max 30fps;

Third Stream: CIF (352*288), Max 30fps

HLC: Supported

BLC: Supported

OSD: Up to 4 OSDs

Privacy Mask: Up to 8 areas

ROI: Up to 2 areas

Motion Detection: Up to 4 areas

Smart

Behavior Detection: Intrusion, Motion detection,Tampering alarm

Intrusion: Enter and loiter in a pre-defined virtual region

Network

Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS

Compatible Integration: ONVIF (Profile S, Profile T), API

Interface

Network: 10/100M Base-TX Ethernet

General

Power:

DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 4.5W

Dimensions (L × W × H): 167.3 × 62.9 × 62.7mm (6.6” × 2.5” × 2.5”)

Weight: 0.45kg (0.99lb)

Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Ingress Protection: IP67

Reset Button: Supported
