Uniview

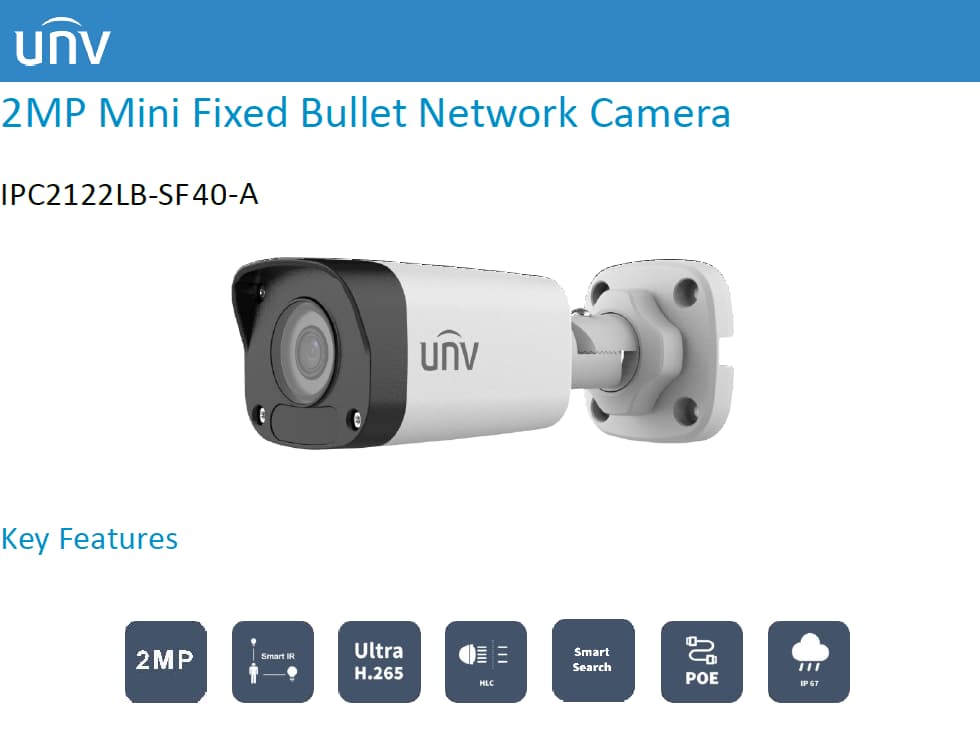

UNV IPC2122LB-SF40-A 2.0MP/4mm/30m IR BULLET IP CAMERA
Tk
3550
Metal + Plastic
Smart IR , up to 30m IR distance
Ultra 265, H.265, H.264
1 YEAR WARRANTY
IP Camera
• High quality image with 2MP, 1/2.8"CMOS sensor
• 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
• Ultra 265, H.265, H.264
• Smart IR, up to 30m (98ft) IR distance
• Day/night functionality
• 2D/3D DNR (Digital Noise Reduction)
• IP67 protection
• Support PoE power supply
• 3-Axis
Camera
Sensor: 1/2.8", 2.0 megapixel, progressive scan, CMOS
Lens: [email protected]
DORI Distance:
| Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8 | 43.4 | 17.4 | 8.7 | 4.3 |
| 4.0 | 62.1 | 24.8 | 12.4 | 6.2 |
Angle of View (H): 87.5°
Angle of View (V): 46.3°
Angle of View (O): 92.4°
Adjustment angle:
Pan: 0° ~ 360°
Tilt: 0° ~ 90°
Rotate: 0° ~ 360°
Shutter: Auto/Manual, 1 ~ 1/100000s
Minimum Illumination:
Colour:
0.01Lux (F2.0, AGC ON)
0Lux with IR on
Digital noise reduction: 2D/3D DNR
Day/Night: IR-cut filter with auto switch (ICR)
S/N: >52dB
IR Range: Up to 30m (98ft) IR range
Wavelength: 850nm
IR On/Off Control: Auto/Manual
Defog: Digital Defog
WDR: DWDR
Video
Video Compression: Ultra 265, H.265, H.264
H.264 code profile: Baseline profile, Main profile, High profile
Frame Rate:
Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate: 128 Kbps~16 Mbps
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas
ROI: Up to 8 areas
Motion Detection: Up to 4 areas
White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction: 2D/3D DNR
Smart IR: Supported
Flip: Normal/Vertical/Horizontal/180°
Dewarping: N/A
HLC: Supported
BLC: Supported
Network
Protocols: IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP
Compatible Integration: API
Client:
EZStation
EZView
EZLive
Web Browser: Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
Interface
Network: 10/100M Base-TX Ethernet
Certifications
Certifications:
CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power:
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 5.5W
Dimensions (L × W × H): 161 × 63 ×62mm (6.4” × 2.5” × 2.4”)
Net Weight: 0.27kg (0.60lb)
Material: Metal + Plastic
Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection: 4KV
Ingress Protection: IP67
Reset Button: N/A
