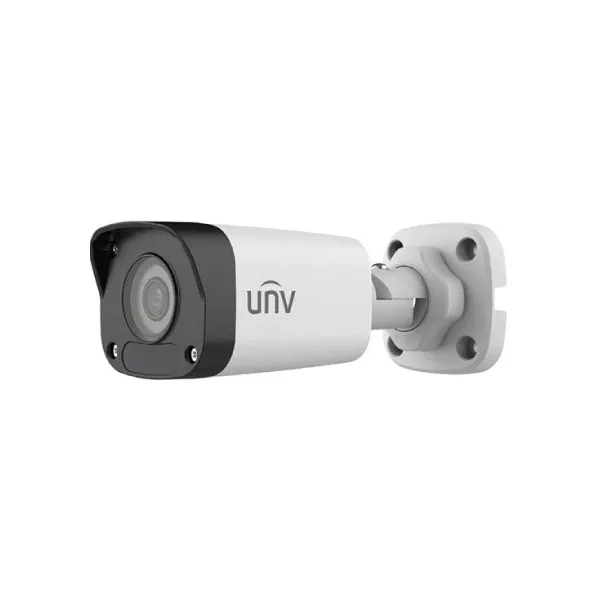

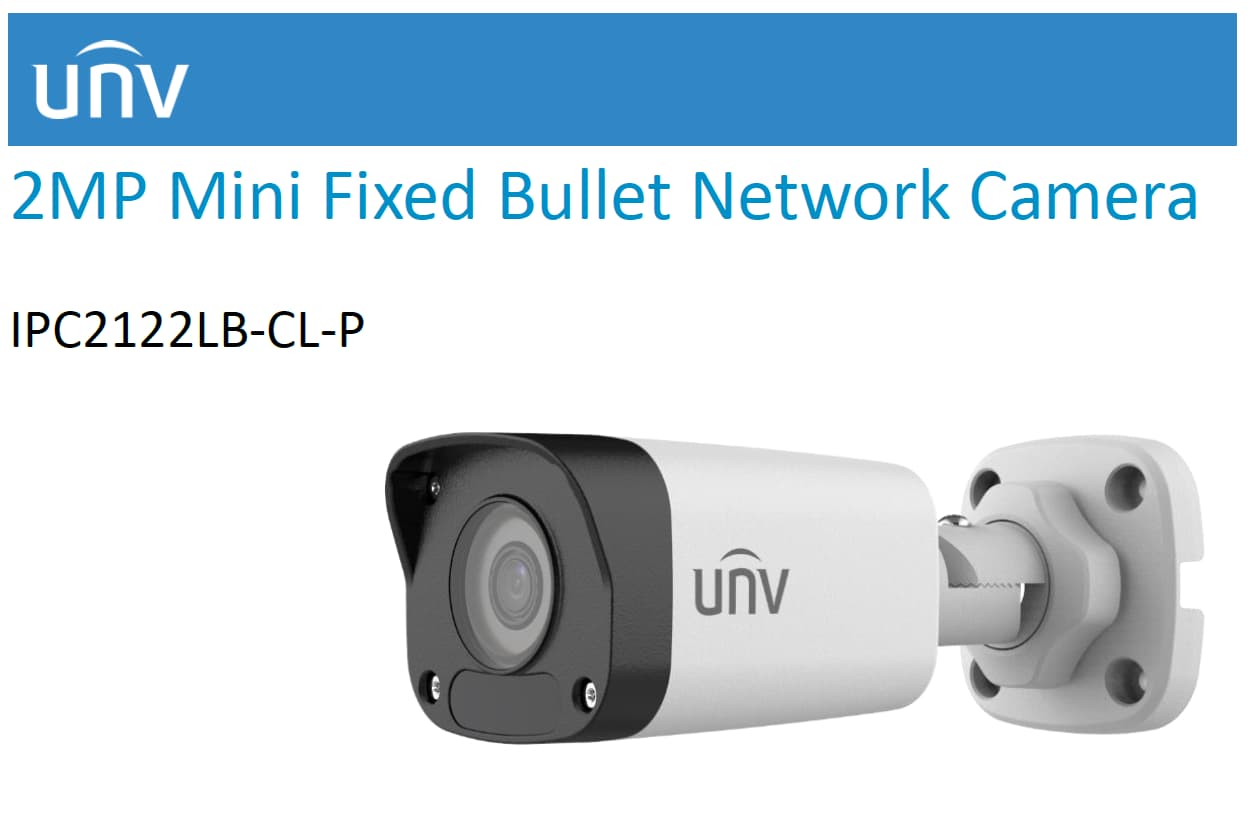

UNV IPC2122LB-CL-P 2.0MP/4mm/40m IR BULLET IP CAMERA

Camera
Sensor: 1/2.8", 2.0 megapixel, progressive scan, CMOS
Minimum Illumination: Colour: 0.01Lux (F2.0, AGC ON), OLux with IR on
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1~1/100000s
Adjustment angle: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N: >52dB
WDR: DWDR

Lens
Lens Type: 4.0mm @1.6, Fixed-focal
Lens Mount: M12
Angle of View: (H) 87.5°
Angle of View: (V) 46.3°
Angle of View: (O) 92.4°

DORI
DORI Distance:
Lens (mm): 4.0
Detect (m): 62.1
Observe (m): 24.8
Recognize (m): 12.4
Identify (m): 6.2

Illuminator
IR Range: Up to 40m IR range
Wavelength: 850nm
IR On/Off Control: Auto/Manual

Video
Video Compression: Ultra 265, H.265, H.264
H.264 code profile: Baseline profile, Main profile, High profile
Frame Rate
Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate: 128 Kbps~6 Mbps
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas
ROI: Up to 8 areas
Motion Detection: Up to 4 areas

White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Image Setting: Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
Digital noise reduction: 2D/3D DNR
Smart IR: Supported
Flip: Normal/Vertical/Horizontal/180°
Dewarping: N/A
HLC: Supported
BLC: Supported
Defog: Digital Defog

Network
Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP
Compatible Integration: API, SDK
User/Host: Up to 32 users. 2 user levels: administrator and common user
Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client:
EZStation
EZView
EZLive
Web Browser: Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+

Interface
Network: 1 * RJ45 10M/100M Base-TX Ethernet

Certification:
EMC:
FCC: FCC Part 15
Safety:
CE: EN 60950-1
UL: UL60950-1
IEC 60950-1

General
Power:
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 5.5W
Power Interface:
Ø 5.5mm coaxial power plug
Dimensions (L × W × H):
161 × 63 ×62mm (6.4” × 2.5” × 2.4”)
Weight:
0.27kg (0.60lb)
Material:
Metal + Plastic
Working Environment:
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment:
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection:
4KV
Reset Button:
N/A
Ingress Protection:
Ingression protection: IP67
