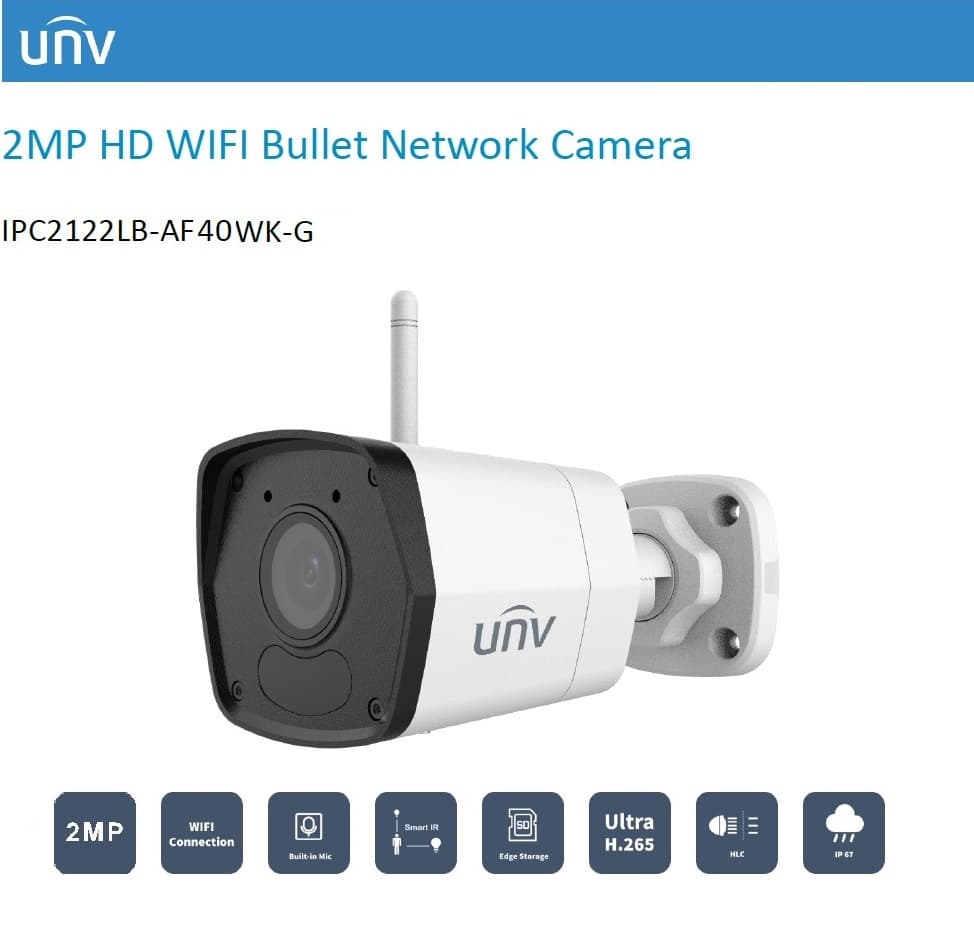

UNV IPC2122LB-AF40WK-G 2.0MP/4mm/30m IR BULLET IP CAMERA W/128G SUPPORTED SD CARD SLOT, WiFi & BUILT-IN MIC

Camera
Sensor: 1/2.9", 2.0 megapixel, progressive scan, CMOS
Minimum Illumination: Colour: 0.01 lux (F2.0 AGC ON), 0 lux with IR on
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1~1/100000 s
Adjustment Angle:  Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°,
S/N: >52dB
WDR: DWDR

Lens
Lens Type: [email protected]
Iris: Fixed
Field of View (H): 83.7°
Field of View (V): 44.6°
Field of View (D): 89.1°

DORI
DORI Distance:
Lens:
2.8mm
4.0mm
Detect(m):
45.0
64.3
Observe(m):
18.0
25.7
Recognize(m):
9.0
12.9
Identify(m):
4.5
6.4

Illuminator
IR Range: Up to 30m (98 ft) IR range
Wavelength: 850nm
IR On/Off Control: Auto/Manual

Video
Video Compression: Ultra 265, H.265, H.264, MJPEG
H.264 code profile: Baseline profile, Main profile, High profile
Frame Rate: Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max
30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max
30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate: 128 Kbps~6 Mbps
U-code: Support
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas
ROI: Up to 8 areas
Video stream: Dual streams

White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction: 2D/3D DNR
Smart IR: Support
Flip: Normal/Vertical/Horizontal/180°
Dewarping: N/A
HLC: Support
BLC: Support
Defog: Digital Defog

Audio
Audio Compression: G.711U, G.711A
Audio Bitrate: 64 Kbps
Two-way Audio: N/A
Suppression: Support
Sampling Rate: 8KHZ

Storage
Edge Storage: Micro SD, up to 128GB
Network Storage: ANR,NAS(NFS)

Network
Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS,
DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP
Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API , SDK
User/Host: Up to 32 users. 2 user levels: administrator and common user
Security: Password protection, Strong password, HTTPS encryption, Export
operation logs, Basic and digest authentication for RTSP, Digest authentication
for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client:
EZStation
EZView
EZLive
Web Browser: Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52
and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+

Wi-Fi
Wireless Standards: IEEE802.11b/g/n
Frequency Range: 2.4 GHz ~ 2.4835 GHz
Wireless Range: Up to 130 m (The performance varies based on actual environment)
Channel Bandwidth: 20 MHz Support
Modulation Mode:
802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM/HT
Security: 64/128-bit WEP,  WPA-PSK/WPA2-PSK
Transmit Power:
802.11b: 17±1.5dBm @11Mbps
802.11g: 14±1.5dBm @ 54Mbps
802.11n: 12.5±1.5dBm @150Mbps
Receive Sensitivity:
802.11b: -90dBm @11Mbps (Typical)
802.11g: -75dBm @54Mbps (Typical)
802.11n: -74dBm @150Mbps (Typical)
Transmission Rate:
802.11b: 11Mbps
802.11g: 54Mbps
802.11n: up to 150Mbps

Interface
Audio I/O: N/A
Alarm I/O: N/A
Serial Port: N/A
Built-in Mic: Support
Built-in Speaker: N/A
WIFI: Support
Network: 1 RJ45 10M/100M Base-TX Ethernet
Video Output: N/A

Certification
EMC:
CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2:
2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
RF:
FCC ID (FCC CFR 47 part15 C)
CE RED (EN 62311: 2008, EN 300 328 V2.2.2(2019-07), EN 301489-1 V2.2.3(2019-11),
ETSI EN 301 489-17 V3.2.4(2020-09))
Safety:
CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment: CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH
(Regulation (EC) No 1907/2006)
Protection: IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)

General
Power: DC 12V±25%
Power consumption: Max 4.0 W
Power Interface: Ø 5.5mm coaxial power plug
Dimensions: (L × W × H)    172 × 76 ×72 mm (6.8” × 3” × 2.8”)
Weight: 0.25 kg (0.55 lb)
Material: Metal + Plastic
Working Environment: -30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-
condensing)
Strorage Environment: -30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-
condensing)
Surge Protection: 4KV
Reset Button: Support
