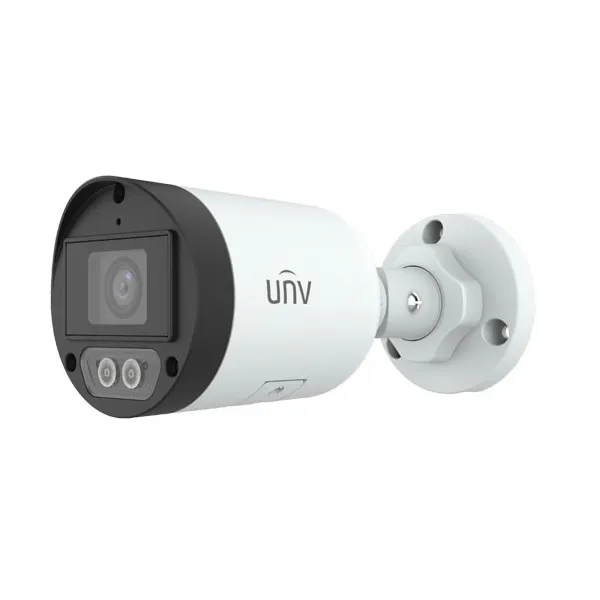

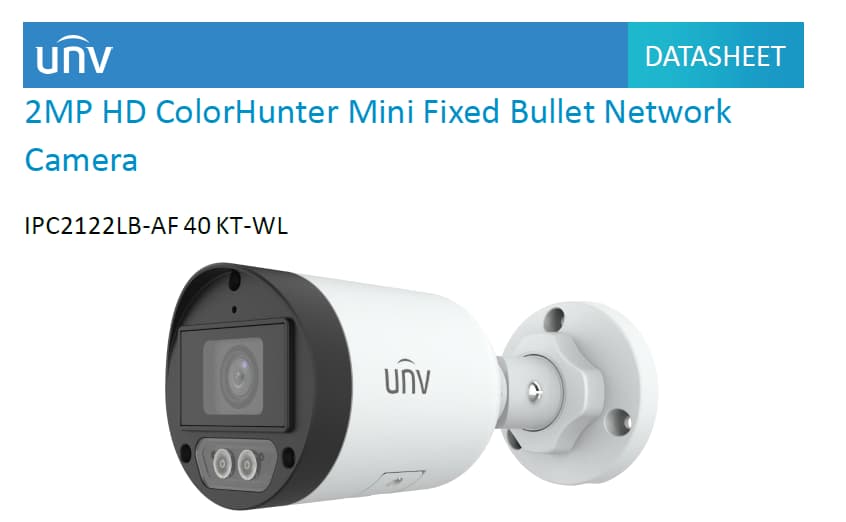

UNV IPC2122LB-AF40KT-WL 2.0MP/4MM/30M IR/BUILT IN MIC/128GB SD CARD SLOT HD COLORHUNTER FIXED BULLET IP CAMERA

Camera
Sensor: 1/2.9", 2.0 megapixel, progressive scan, CMOS
Minimum Illumination: Colour: 0.005 lux ( F1.6, AGC ON)
0 lux with IR
Shutter: Auto/Manual, 1 ~ 1/100000s
Adjustment Angle
Pan: 0° ~ 360°
Tilt: 0° ~ 80°
Rotate: 0° ~ 360°
WDR: DWDR
S/N: >52dB

Lens
Lens type: [email protected]
Iris: Fixed
Field of View (H): 83.7°
Field of View (V): 44.6°
Field of View (D): 89.1°

DORI
DORI Distance
Lens (mm):
2.8
4.0
Detect (m):
45.0(147.6ft)
64.3(210.9ft)
Observe (m):
18.0(59.1ft)
25.7(84.4ft)
Recognize (m):
9.0(29.5ft)
12.9(42.2ft)
Identify (m):
4.5(14.8ft)
6.4(21,1ft)

Illuminator
Warm Light Range: Up to 30m (98ft)
Light On/Off Control: Auto/Manual

Video
Video Compression: Ultra H.265,H.265, H.264
Frame Rate:
Main Stream:
2MP (1920*1080) 1080),Max 30fps ; 720P (1280* 720),Max 30 fps
Sub Stream:
D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
H.264 code profile: Baseline profile, Main profile, High profile
Video Bit Rate: 128 Kbps~6144Kbps
U code: Support(Main stream)
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas
ROI: Up to 8 areas
Video stream: Dual streams

White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction: 2D/3D DNR
Smart IR: Support
Flip: Normal/Flip Vertical/Flip Horizontal/180°
Dewarping: N/A
HLC: Support
BLC: Support
Defog: Digital Defog

Events
Basic Detection: Motion detection, Audio Detection
General Function: Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication

Audio
Audio Compression: G.711U, G.711A
Audio Bitrate: 64 Kbps
Two-way Audio: N/A
Suppression: Support
Sampling Rate: 8KHz

Storage
Edge Storage: Micro SD, up to 128 GB

Network
Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP,RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, Qos, ,SSL/TLS
Compatible Integration: ONVIF (Profile S, Profile T, Profile G),API,SDK
User/Host: Up to 32 users. 2 user levels: administrator and common user
Security: Password protection, strong password, HTTPS encryption, Export operation logs,
basic and digest authentication for RTSP,
digest authentication for HTTP, TLS 1.2 WSSE and digest authentication for ONVIF
Client:
EZStation
EZLive
EZView
Web Browser:
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface
Audio I/O: N/A
Alarm I/O: N/A
Serial Port: N/A
Built-in Mic: Support
Built-in Speaker: N/A
WIFI: N/A
Network: 1 * RJ45 10M/100M Base-TX Ethernet
Video Output: N/A

Certification
EMC:
CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 50130)
FCC (FCC 47 CFR part15 B)
Safety:
CE LVD (EN 62368-1)
CB (IEC 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection: IP67 (IEC 60529)

General
Power:
DC12V(±25%) , PoE(IEEE 802.3af)
Power consumption: Max 7.8 W
Power Interface: Ø5.5mm coaxial power plug
Dimensions (L x W x H): 162× 67 × 67 mm ( 6.4 ” × 2.6 ” × 2.6”)
Weight: 0.24kg(0.53lb)
Material: Metal +Plastic
Working Environment: -30°C ~ 60°C ( 22°F ~ 140°F), Humidity: ≤95% RH (non condensing)
Storage Environment: -30°C ~ 60°C ( 22°F ~ 140°F), Humidity: ≤95% RH (non condensing)
Surge protection: 4KV
Reset button: N/A
