Uniview

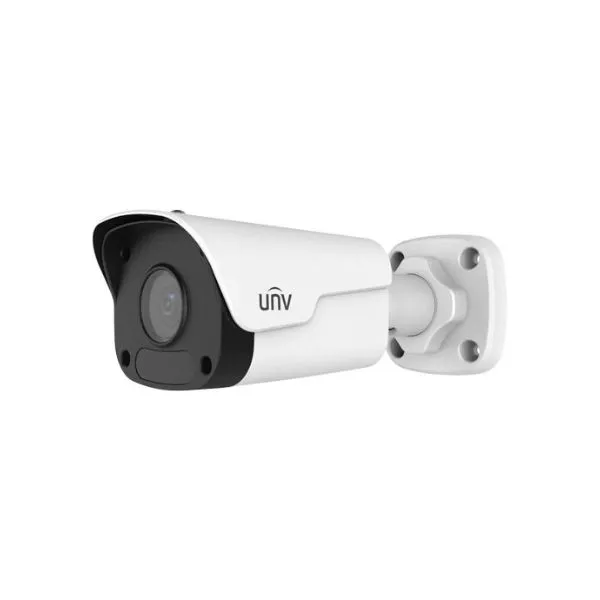

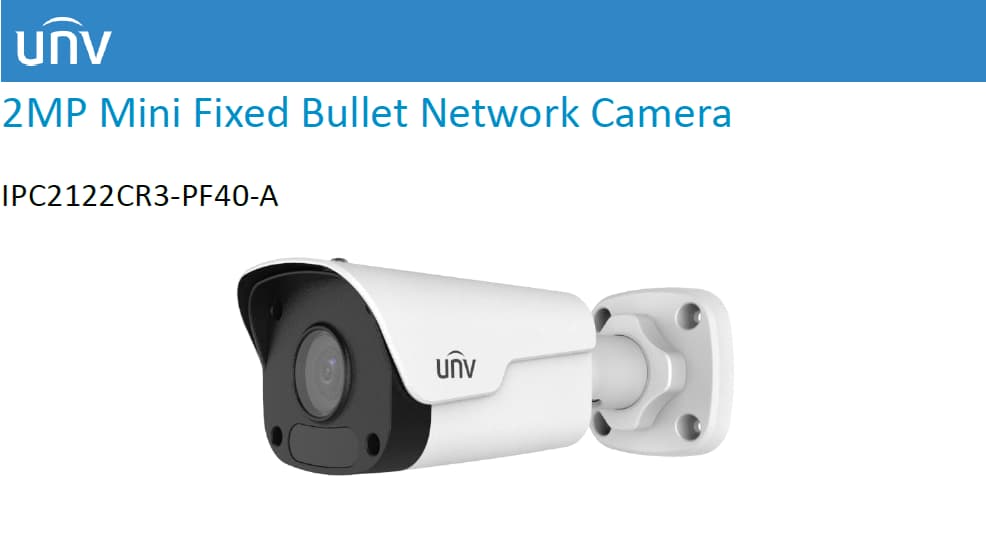

UNV IPC2122CR3-PF40-A 2.0MP / 4mm IR BULLET IP CAMERA
Out Of Stock
- Plastic Housing
- Smart IR , up to 30m IR distance
- Ultra 265, H.265, H.264, MJPEG
- Angle of view(H): 86.5°
IP Camera
Quantity:
• Day/night functionality
• Smart IR, up to 30m (98ft) IR distance
• 2D/3D DNR (Digital Noise Reduction)
• Ultra 265, H.265, H.264
• ROI (Region of Interest)
• ONVIF Conformance
• Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
• Wide voltage range of ±25%
• IP67
Camera
Sensor: 1/2.7", 2.0 megapixel, progressive scan, CMOS
Lens: [email protected]
DORI Distance
| Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 4.0 | 66.7 | 26.7 | 13.3 | 6.7 |
| 6.0 | 90.0 | 36.0 | 18.0 | 9.0 |
Angle of View (H): 86.5°
Angle of View (V): 44.1°
Angle of View (O): 106.4°
Adjustment angle: Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
Shutter: Auto/Manual, 1 ~ 1/100000s
Minimum Illumination:
Colour: 0.02Lux (F2.0, AGC ON)
0Lux with IR on
Digital noise reduction: 2D/3D DNR
Day/Night: IR-cut filter with auto switch (ICR)
S/N: >52dB
IR Range: Up to 30m (98ft) IR range
WDR: DWDR
Video
Video Compression: Ultra 265, H.265, H.264
H.264 code profile: Baseline profile, Main Profile
Frame Rate:
Main Stream: 1080P (1920*1080), Max 25fps;
Sub Stream: 4CIF (704*576), Max 25fps;
Third Stream: CIF (352*288), Max 25fps
HLC: Supported
BLC: Supported
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas
ROI: Up to 2 areas
Motion Detection: Up to 4 areas
Network
Protocols: IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP
Compatible Integration: ONVIF (Profile S, Profile T), API
Interface
Network: 10/100M Base-TX Ethernet
General
Power:
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 5.5W
Dimensions (L × W × H): 167.3 × 62.9 ×62.7mm (6.6” × 2.5” × 2.5”)
Weight: 0.27kg (0.60lb)
Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection: IP67
