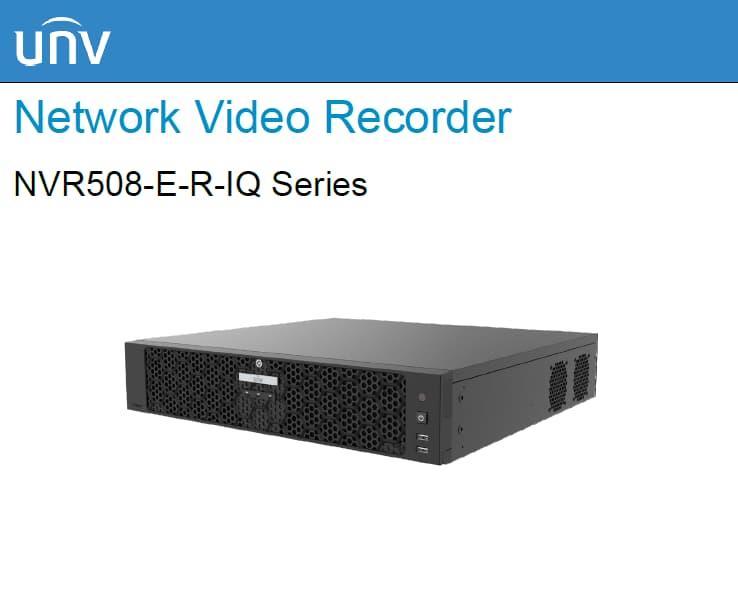

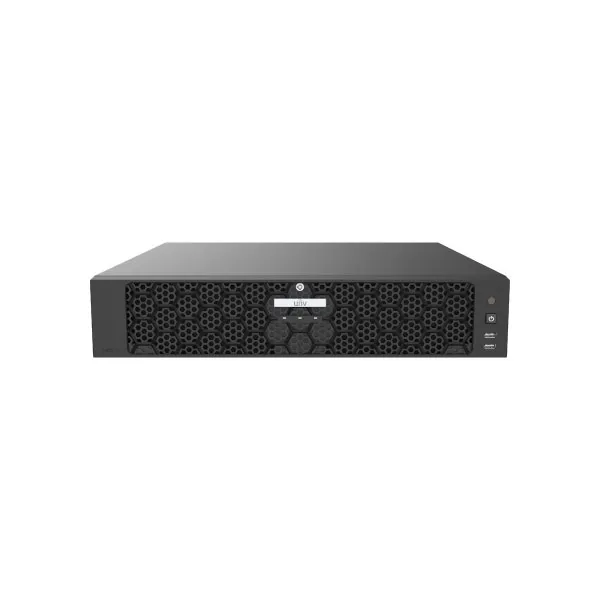

UNIVIEW NVR508‑64E‑R‑IQ 64CH 4K Smart NVR
Coming Soon
Ultra 265/H.265/H.264 video formats
64-channel input
VGA and 4k HDMI independent output
2 YEAR WARRANTY
NVR
• Support Ultra 265/H.265/H.264 video formats
• 32/64‑channel input
• Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T) and RTSP protocols
• Support 2 HDMI and 2 VGA. VGA1 and HDMI1 simultaneous output, VGA2 and HDMI2 simultaneous output. VGA1/HDMI1 and VGA2/HDMI2 independent output
• Up to 32 Megapixels resolution recording
• Support N+1 Hot spare
• Support HDD hot swap with RAID 0, 1, 5, 6, 10 storage scheme configurable
• Redundant power supply optional
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade
Decoding
Decoding Format: Ultra 265, H.265, H.264
Decoding Capability:
Smart Off：2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 64 x 720P@30
Smart On：1 x 32MP@30, 3 x 16MP@30, 4 x 12MP@30, 6 x 4K@30, 8 x 6MP@30, 9 x 5MP@30, 12 x 4MP@30, 16 x 3MP@30, 24 x 1080P@30, 48 x 720P@30
Decoding Capability Description: The resolution of each channel cannot exceed 8192 pixels in length or width
Audio Compression: G.711A, G.711U
Network
Incoming Bandwidth:
Smart Off：384Mbps
Smart On：200Mbps
Outgoing Bandwidth:
Smart Off：384Mbps
Smart On：200Mbps
Remote Users: 128
Protocols: TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4
Browser (Plugin): IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Video/Audio Input
IP Video Input: 64-ch
RCA Audio Input: 1-ch
Video/Audio Output
HDMI Output: 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output: 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
RCA Audio Output: 2-ch
Liveview Display:
HDMI1 and VGA1: 1/4/6/8/9/16/25/36/64;
HDMI2 and VGA2: 1/4/6/8/9/16
Corridor Mode Screen: HDMI1 and VGA1: 3/4/5/7/9/10/12/16/32; HDMI2 and VGA2: 3/4/5/7/9/10/12/16
Two-way Audio
Two-way Audio: 1-ch, RCA (Using the audio input and output)
Snapshot
FTP/Schedule/Event Snapshot: 16-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution)
Recording
Recording Resolution: 32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Smart
VCA Detection by IPC: Face Detection, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring
Smart by NVR: Face Detection, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD)
VCA Search: Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, SmartSearch+, AcuSearch
Smart by IPC: All channels (up to 16 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
Vehicle Picture Library: Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
SIP by NVR: 8-ch
UMD by NVR: 16-ch
Capacity of Snapshot Records: 3 millions records for face snapshot, 2 millions records for vehicle snapshot, 2 millions records for SIP, 2 millions records for video Metadata
Alarm
General Alarm: Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm: IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, Array Damaged, Array Degraded
GUI Language
GUI Language: 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA: 8 SATA Interfaces
Capacity: Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature)
Disk Group: Support
Redundant Storage: Support
Disk Array Type: RAID 0, 1, 5, 6, 10
Hot Swap: Support
External Interface
Network Interface: 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USB: Front panel: 2 × USB2.0, Rear panel: 2 × USB3.0
RS485: 1
RS232: 1
Alarm In: 16-ch
Alarm Out: 10-ch
eSATA: 1
Power Output: 12 V
Power Supply: AC 100~240V
Redundant Power Supply: Support
Working Environment
Working Temperature: -10 ℃ to 50 ℃ (14 ℉ to 122 ℉)
Working Humidity: ≤ 90% RH (non-condensing)
Power Consumption (without HDD): ≤ 35W
Dimensions
Weight (without HDD): ≤ 6.5Kg (14.3lb)
Height: 2U
Dimensions: 443mm × 448mm × 93mm (17.4"×17.6"×3.7")
Certification
Certification: CE; FCC; UL; RoHS; WEEE
CE: EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC: Part15 Subpart B
