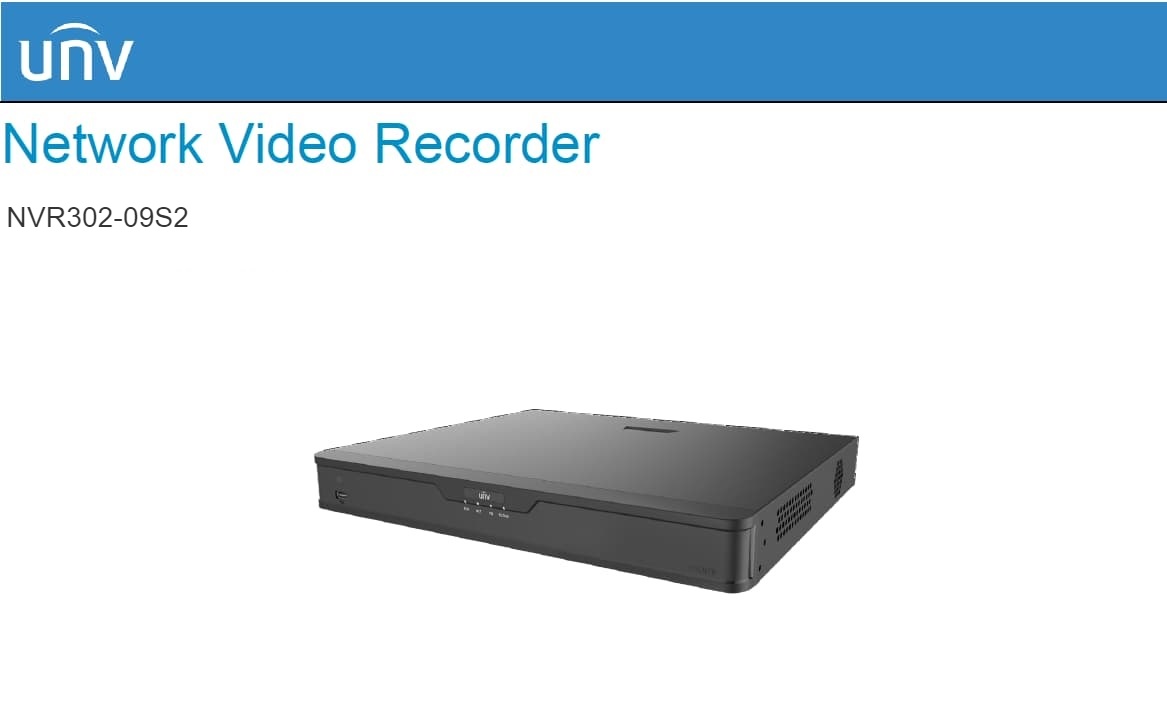

UNIVIEW NVR302-09S2 9CH 4K NVR
Out Of Stock
Incoming BW : 160 Mbps
Support Ultra 265/H.265/H.264 video formats
9 channel input
Support ONVIF and RTSP protocols
Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K resolution
NVR
• Support Ultra265/H.265/H.264 video formats
• 9 channel input
• Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
• HDMI and VGA simultaneous output
• Up to 4K resolution recording
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade
Decoding
Decoding Format: Ultra 265, H.265, H.264
Decoding Capability: NVR302-09S2:2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 9 x 1080P@25
Audio Compression: G.711A, G.711U
Network
Incoming Bandwidth: 160Mbps
Outgoing Bandwidth: 64Mbps
Remote Users: 128
Protocols: TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;RTSP
Browser(Plugin):
Windows: IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above)
Video/Audio Input
IP Video Input: NVR302-09S2:9-ch
RCA Audio Input: 1-ch
Video/Audio Output
HDMI Output: HDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA Output: VGA:1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
RCA Audio Output: 1-ch
Liveview Display: NVR302-09S2:1/4/6/8/9
Corridor Mode Screen: NVR302-09S2:3/4/5/7/9
Two-way Audio
Two-way Audio: 1-ch, RCA(Using the audio input and output)
Snapshot
FTP/Schedule/Event Snapshot: 4-ch snapshot, up to D1 resolution
Recording
Recording Resolution: 8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
Synchronous Playback in Local: NVR302-09S2:9-ch
Smart
VCA Detection by IPC:
Face Detection; SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra Motion Detection(UMD);People Counting(People Flow Counting, Crowd Density Monitoring)
VCA Search:VCA Search:
Motor Vehicle Search;Non-Motor Vehicle Search;Human Body Search;General Search;People Counting Report
Smart by IPC: Total 8-ch(Face Detection, SIP, UMD)
Alarm
General Alarm:
Defocus Detection;Scene Change Detection;Object Left Behind;Object Removed;Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection
Alert Alarm:
IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal
Hard Disk
SATA: 2 SATA Interfaces
Capacity: Up to 10TB for each HDD(The maximum HDD capacity varies with environment temperature)
External Interface
Network Interface: 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interface
USB: Front panel: 1 x USB2.0;Rear panel: 1 x USB3.0, 1 x USB2.0
RS485: N/A
RS232: N/A
Alarm In: N/A
Alarm Out: N/A
Power Supply: DC 12V/3A
Power Switch: Support
Working Environment
Working Temperature: -10 °C ~ 55 °C (14 °F ~ 131 °F)
Working Humidity: ≤ 90% RH (non-condensing)
Power Consumption (without HDD): ≤ 15W
Dimensions
Weight (without HDD): ≤ 2.48Kg (5.47lb)
Dimensions: 380mm × 315mm ×53mm (15.0"×12.4"×2.1")
Certification
Certification: CE;FCC;UL;RoHS;WEEE
CE :EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC: Part15 Subpart B
