Uniview

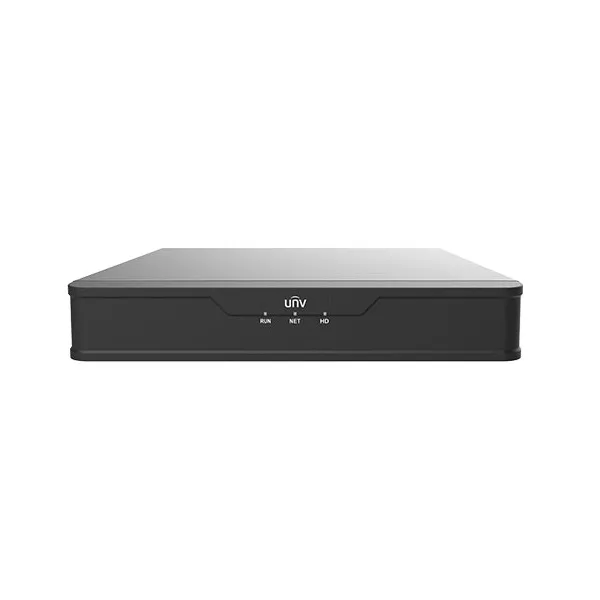

UNIVIEW NVR301-08S3-P8 8-CHANNEL WITH PoE NETWORK VIDEO RECORDER
Out of Stock
8 port PoE
Incoming BW : 64Mbps
1-ch HDMI (4K), 1-ch VGA
1 SATA HDD up to 8 TB
NVR
• Support Ultra 265/H.265/H.264 video formats
• 4/8-channel input
• Plug & Play with 4/8 independent PoE network interfaces
• Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
• Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
• HDMI and VGA simultaneous output
• vUp to 4K resolution recording
• 1 SATA HDDs, up to 8TB
• vSupport cloud upgrade
Video/Audio Input
IP Video Input: 8-ch
Network
Incoming Bandwidth: 64Mbps
Outgoing Bandwidth: 48Mbps
Remote Users: 128
Protocols: TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP
Video/Audio Output
HDMI/VGA Output:
HDMI:
4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA:
1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution: 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output: 1-ch, RCA
Audio Compression: G.711A, G.711U
Synchronous Playback: 8-ch
Liveview display: 1/4/6/8/9
Corridor Mode Screen: 3/4/5/7/9
Snapshot
FTP/Schedule/Event Snapshot: 1-ch snapshot, up to D1 resolution
Decoding
Decoding format: Ultra 265/H.265/H.264
Live view/Playback: 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability: 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30
Hard Disk
SATA: 1 SATA interfaces
Capacity:
Up to 8TB for each disk
(The maximum HDD capacity varies with environment temperature)
Smart
VCA Detection by Camera: Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection, Ultra Motion Detection(UMD)
VCA Search: Face Search, Behavior Search
Smart Intrusion Prevention (SIP), UMD by Camera Total: 4-ch
General Alarm
General Alarm: Motion, Tampering, Human Body Detection, Video Loss, Alarm Input
Alert Alarm: IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
Network Interface: 1 RJ-45 10M/100Mself-adaptive Ethernet Interface
USB Interface: Rear panel: 2 x USB2.0
RS232: NA
RS485: NA
Alarm In: NA
Alarm Out: NA
PoE
Interface: 8 RJ-45 10M/100Mself-adaptive Ethernet Interface
Max Power:
Max 30W for single port
Max 75W in total
Supported Standard: IEEE 802.3at, IEEE 802.3af
General
Power Supply:
52V DC
Power Consumption: ≤9 W (without HDD)
Working Environment: -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H): 260mm ×240mm × 46 mm (10.2" × 9.4" ×1.8")
Weight (without HDD): 1≤1.1kg (2.43lb)
Certification
Certification: CE, FCC, UL, RoHS, WEEE
CE: EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
FCC: Part15 Subpart B, ANSI C63.4
