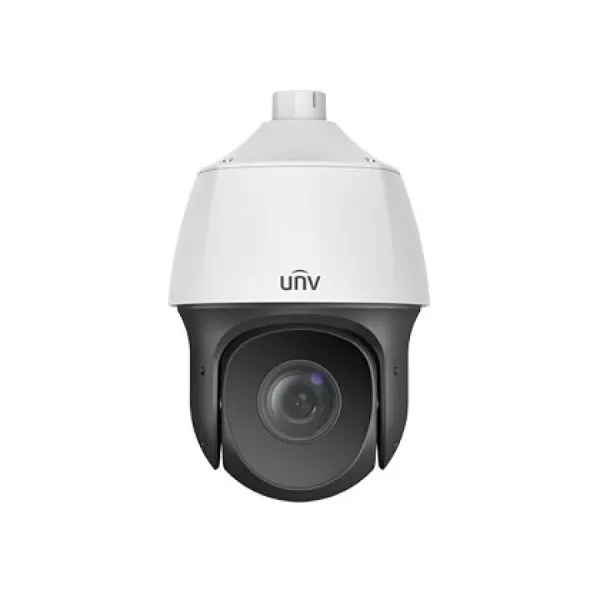

Uniview IPC6612SR-X33-VG 2MP 33x Lighthunter Network PTZ Dome Camera

Camera
Sensor: 1/2.8", 2.0 megapixel, progressive scan, CMOS
Min. Illumination: Colour: 0.001 Lux (F1.5, AGC ON)
0 Lux with IR
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto, 1 ~ 1/100000s
WDR: 120dB
S/N: >52dB

Lens
Lens type: 4.5~ 148.5mm, AF automatic focusing and motorized zoom lens
Optical Zoom: 33
Iris: Autol; F1.5 ~ F4.0
Field of View (H) :56.23° ~ 2.57°
Field of View (V): 33.46° ~ 1.44°
Field of View (D): 69.16° ~ 3.03°

DORI
DORI Distance:
Lens (mm):
4.5
148.5
Detect (m):
72.9(239.3ft)
2187.9(7178.3ft)
Observe (m):
29.2(95.7ft)
875.2(2871.3ft)
Recognize (m):
14.6(47.9ft)
437.6(1435.7ft)
Identify (m):
7.3(23.9ft)
218.8(717.8ft)

Illuminator
IR Range: Up to 150m (492 ft) IR range
Wavelength: 850nm
IR On/Off Control: Auto/Manual

Video
Video Compression: Ultra 265, H.265, H.264, MJPEG
Frame Rate:
Main Stream: 2MP(1920*1080),Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps;
Third Stream: D1 (720*576), Max 30fps;
Video Bit Rate: 128 Kbps~16 Mbps
U-code: Support
ROI: Up to 8 areas
Video stream: Triple streams
OSD: Up to 8 OSDs
Privacy Mask: 24 areas, up to 4 areas per scene

White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction: 2D/3D DNR
Smart IR: Support
Flip: Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
HLC: Support
BLC: Support
Defog: Digital Defog

Intelligent
Smart Intrusion Prevention: Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection

Events
Basic Detection: Motion detection, Audio detection, Tampering Alarm
Auto Tracking: Support
General Function: Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio
Audio Compression: G.711U,G.711A
Audio Bitrate: 64 Kbps
Two-way Audio: Support
Suppression: Support
Sampling Rate: 8KHZ

Storage
Edge Storage: Micro SD, up to 256 GB
Network Storage: ANR,NAS(NFS)

Network
Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS
Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API,SDK
User/Host: Up to 32 users. 3 user levels: administrator, operator and common user
Security: Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client:
EZStation
EZLive
EZView
Web Browser: Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above

Pan & Tilt
Pan Range: 360° (endless)
Pan Speed: 2°/s ~ 75°/s, Preset speed: 180°/s
Tilt Range: –15° ~ 90° (auto reverse)
Tilt Speed: 2°/s ~ 75°/s, Preset speed: 80°/s
Number of Presets: 1024
Preset Patrol: 16 patrols, up to 64 presets for each patrol
Route Patrol: 16 patrols, up to 32 actions for each patrol
Recorded Patrol: 16 patrols, up to 128 actions for each patrol
Patrol Stay Time: 15s~1800s
Preset Image Freeze: Support
Home Position: Support

Interface
Audio I/O: 1/1
Alarm I/O: 2/1
Serial Port: 1 RS485
Built-in Mic: N/A
Built-in Speaker: N/A
WIFI: N/A
Network: 1 * RJ45 10M/100M Base-TX Ethernet
Video Output: N/A

Certification
EMC: CE-EMC (EN 55032:2015+A11:2020; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55035:2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety: CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1-14, 2nd Ed., Issue Date: 2014-12-01)
Environment: CE-ROHS (2011/65/EU;(EU)2015/863)
Protection: IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)

General
Power: DC12V±10% , PoE+ (IEEE802.3 at)
Power consumption: Max 25W
Power Interface: Ø 5.5mm coaxial power plug
Dimensions (Ø x H): Ø220 x 370mm (Ø8.7” x 14.6”)
Weight: 3.4kg(7.48lb)
Working Environment: -40℃~65℃(-40°F ~ 149°F) , Humidity: ≤95% RH (non-condensing)
Storage Environment: -40℃~70℃(-40°F ~ 158°F) , Humidity: ≤95% RH (non-condensing)
Surge protection: 6KV
Reset button: Support
