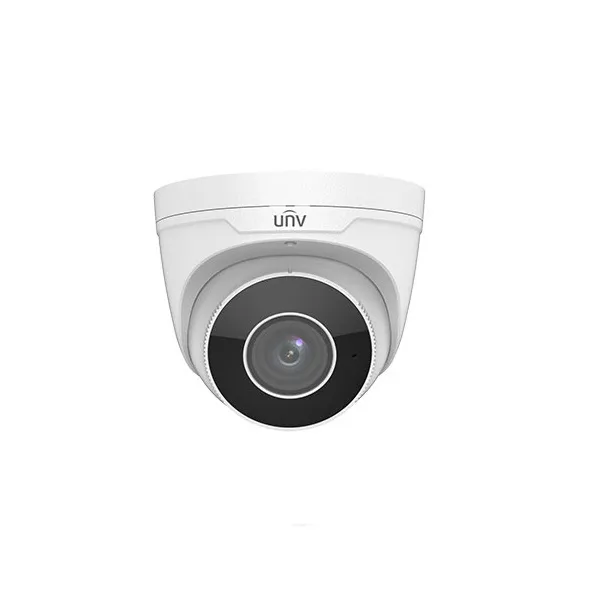

Uniview IPC3632LB-ADZK-G 2MP HD IR VF Eyeball Network Camera

Camera
Sensor: 1/2.7", 2.0 megapixel, progressive scan, CMOS
Minimum Illumination: Colour: 0.005Lux (F1.6, AGC ON), 0Lux with IR
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 ~ 1/100000s
Adjustment angle: Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360°
S/N: >52dB
WDR: 120dB

Lens
Lens Type : 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
Lens Mount: Φ14
Angle of View (H): 108.05°~ 32.59°
Angle of View (V): 56.81°~ 18.36°
Angle of View (O): 111.91°~36.53°

DORI
DORI Distance
Lens (mm)
2.8
12
Detect (m)
42.0
180.0
Observe (m)
16.8
72.0
Recognize (m)
8.4
36.0
Identify (m)
4.2
18.0

Illuminator
IR Range: Up to 40m (131ft) IR range
Wavelength: 850nm
IR On/Off Control: Auto/Manual

Video
Video Compression: Ultra 265, H.265, H.264, MJPEG
H.264 code profile: Baseline profile, Main profile, High profile
Frame Rate:
Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate: 128 Kbps~6144 kbps
U-code: Supported
9:16 Corridor Mode: Supported
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas
ROI: Up to 8 areas
Motion Detection: Up to 4 areas

White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Image Setting: Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
Digital Noise Reduction: 2D/3D DNR
Smart IR: Supported
Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping: N/A
HLC: Supported
BLC: Supported
Defog: Digital Defog

Audio
Audio Compression: G.711
Suppression: Supported
Sampling Rate: 8KHZ

Storage
Edge Storage: Micro SD, up to 128GB
Network Storage: ANR, NAS(NFS)

Network
Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, SNMP
Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API , SDK
User/Host: Up to 32 users. 2 user levels: administrator and common user
Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client:
EZStation
EZView
EZLive
Web Browser:
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+

Interface
Network: 1 * RJ45 10M/100M Base-TX Ethernet
Built-in Mic: Supported

Certification
EMC: FCC: FCC Part 15
Safety:
CE: EN 60950-1
UL: UL60950-1
IEC 60950-1

General
Power:
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 8.0W
Power Interface: Ø 5.5mm coaxial power plug
Dimensions: (Ø x H)    Φ129 x 110mm (Ø5.1” x 4.3”)
Weight: 0.66kg (1.46lb)
Material: Metal
Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection: 6KV
Reset Button: Supported
Ingress Protection: Ingression protection: IP67
