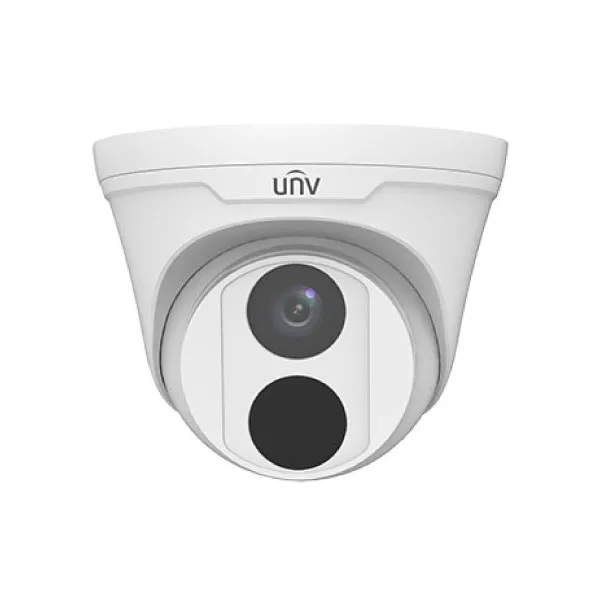

Uniview IPC3612LB-SF28-A 2MP Mini Fixed Dome Camera

Camera
Sensor:    1/2.8", 2.0 megapixel, progressive scan, CMOS
Minimum Illumination: Colour: 0.01Lux (F2.0, AGC ON)
0Lux with IR on
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 ~ 1/100000s
Adjustment angle: Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to360°
S/N: >52dB
WDR: DWDR



Lens
Lens Type: 2.8mm @1.6, Fixed-focal
Lens Mount: M12
Angle of view (H): 106.7°
Angle of View (V): 57.1°
Angle of View (O): 115.7°

DORI
DORI Distance:    Lens (mm)    Detect (m)    Observe (m)    Recognize (m)    Identify (m)

                                              2.8                 43.4                    17.4                        8.7                            4.3

Illuminator
IR Range: Up to 30m (98ft) IR range
Wavelength: 850nm
IR On/Off Control: Auto/Manual

Video
Video Compression: Ultra 265, H.265, H.264
H.264 code profile: Baseline profile, Main profile, High profile
Frame Rate: Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
                            Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate:    128 Kbps~6 Mbps
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas
ROI: Up to 8 areas
Motion Detection: Up to 4 areas

White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Image Setting: Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
Digital noise reduction: 2D/3D DNR
Smart IR: Supported
Flip: Normal/Vertical/Horizontal/180°
Dewarping: N/A
HLC: Supported
BLC: Supported
Defog: Digital Defog

Network
Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP
Compatible Integration: API, SDK
User/Host: Up to 32 users. 2 user levels: administrator and common user
Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client:    EZStation, EZView, EZLive
Web Browser:    Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+

Interface
Network: 1 * RJ45 10M/100M Base-TX Ethernet

Certifications
EMC:    FCC: FCC Part 15
Safety:    CE: EN 60950-1
                    UL: UL60950-1
                    IEC 60950-1

General
Power: DC 12V±25%
Power consumption: Max 4.0W
Power Interface: Ø 5.5mm coaxial power plug
Dimensions (Ø x H): Φ118 x 95mm (Φ4.6” x 3.8”)
Weight: 0.29kg (0.64lb)
Material: Metal + Plastic
Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection: 4KV
Reset Button: N/A
Ingress Protection: Ingression protection: IP67
