Uniview

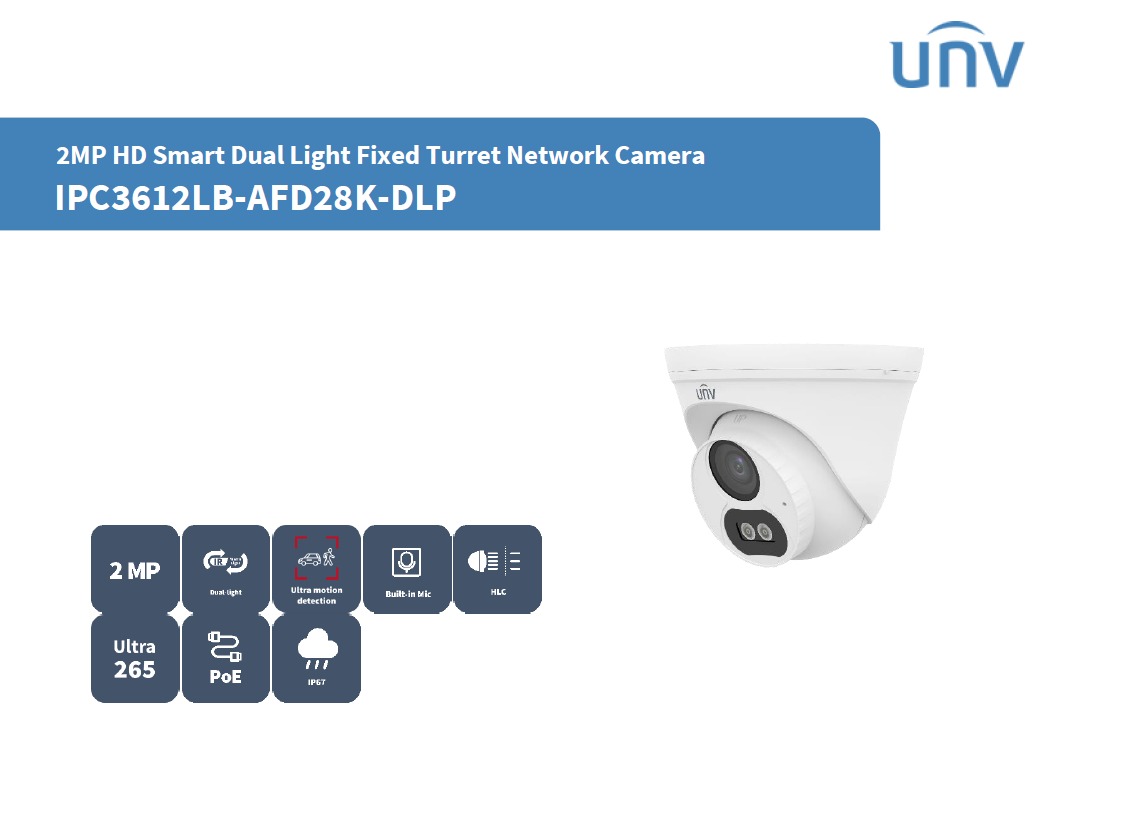

Uniview IPC3612LB-AFD28K-DLP 2MP Fixed Dome Color Network Camera
Ask For Price
Max Resolution: 2 MP
Sensor: 1/2.7" CMOS
Video Compression: Ultra 265, H.265, H.264
Smart IR: Support
IP Camera
• High quality image with 1080P, 1/2.7" CMOS sensor
• 1080P (1920 × 1080)@30/25 fps; 720P (1280 × 720)@30/25 fps
• Ultra 265, H.265, H.264
• Built-in mic
• Smart IR, up to 30 m (98.4 ft.) IR distance
• White light, up to 30 m (98.4 ft.) warm light distance
• 2D/3D DNR (digital noise reduction)
• MicroSD, up to 512 GB
• IP67 protection
• Supports PoE power supply
Model: IPC3612LB-AF28K-DLP
Camera
Max Resolution: 2 MP
Sensor: 1/2.7" CMOS
Min. Illumination: Color: 0.001 Lux (F1.0, AGC ON), 0 Lux with light
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 ~ 1/100000s
Adjustment Angle:
Pan: 0° to 360°,
Tilt: 0° to 80°,
Rotate: 0° to 360°
S/N: >52 dB
WDR: DWDR
Lens
Focal Length: 2.8 mm
Iris Type: Fixed
Iris: F1.0
Field of View (H): 101.1°
Field of View (V): 55.0°
Field of View (D): 111.0°
Lens Type: Fixed
DORI
DORI Distance (Lens): 2.8 mm
DORI Distance (Detect): 45.0 m (147.6 ft.)
DORI Distance (Observe): 18.0 m (59.1 ft.)
DORI Distance (Recognize): 9.0m (29.5 ft.)
DORI Distance (Identify): 4.5 m (14.8 ft.)
Illuminator
Supplemental Light: Warm light
Illumination Distance (IR): 30 m (98.4 ft.)
Illumination Distance (Warm Light): 30 m (98.4 ft.)
Wavelength: 850 nm
Video
Video Compression: Ultra 265, H.265, H.264
H.264 Code Profile: Baseline profile, Main profile, High profile
Frame Rate:
Main Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps
Sub Stream: 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Sub Stream: 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Video Bit Rate: 128 Kbps to 6144 Kbps
U-code: Support(Main stream)
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas
ROI: Support
Video Stream: Dual streams
White Balance: Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance
Digital Noise Reduction: 2D/3D DNR
Smart IR: Support
Flip: Normal, Flip vertical, Flip horizontal, 180°
Dewarping: N/A
HLC: Support
BLC: Support
Defog: Digital defog
Events
Basic Detection: Ultra motion detection, Motion detection, Audio detection, Tampering alarm
General Function: Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Audio
Audio Compression: G.711U, G.711A
Audio Bitrate: 64 Kbps
Two-way Audio: N/A
Suppression: Support
Sampling Rate: 8 kHz
Storage
Edge Storage: MicroSD, up to 512 GB
Network Storage: ANR, NAS (NFS)
Network
Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, QoS, SSL/TLS, SNMP
Compatible Integration: ONVIF (Profile S, Profile T) , API, SDK
User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client: EZStation, APP
Web Browser: Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O: N/A
Alarm I/O: N/A
Serial Port: N/A
Built-in Mic: Support
Built-in Speaker: N/A
WIFI: N/A
Network: 1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output: N/A
Certification
EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4)FCC (FCC 47 CFR part15 B)
Safety: CE LVD (EN 62368 1)UL/CUL (UL 62368 1, CAN/CSA C22.2 No. 62368 1)
Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
Protection: IP67 (IEC 60529)
General
Power: DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption: Max. 3.9 W
Power Interface: Ø5.5 mm coaxial power plug
Dimensions: Ø117.8 mm × 100.3 mm (Ø4.6" × 3.9") (Ø × H)
Weight: 0.26 kg (0.57 lb.)
Material: Metal+ Plastic
Storage Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Working Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection: 4 KV
Reset Button: Support
Web Client Language: 4 Languages: English, Russian, Spanish, Vietnamese
