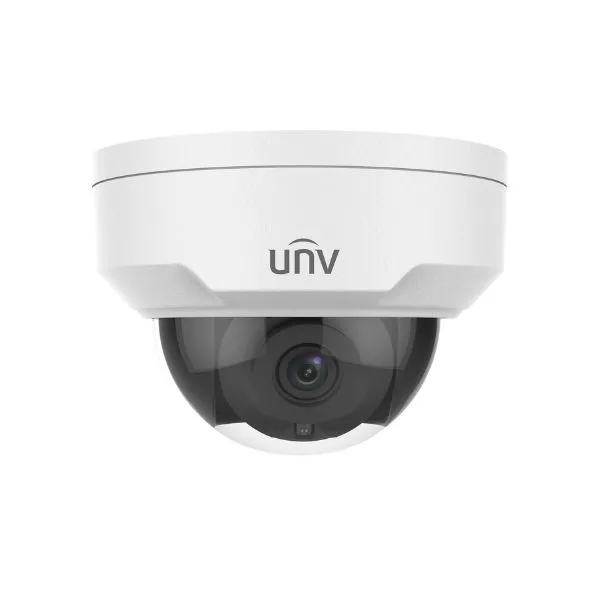

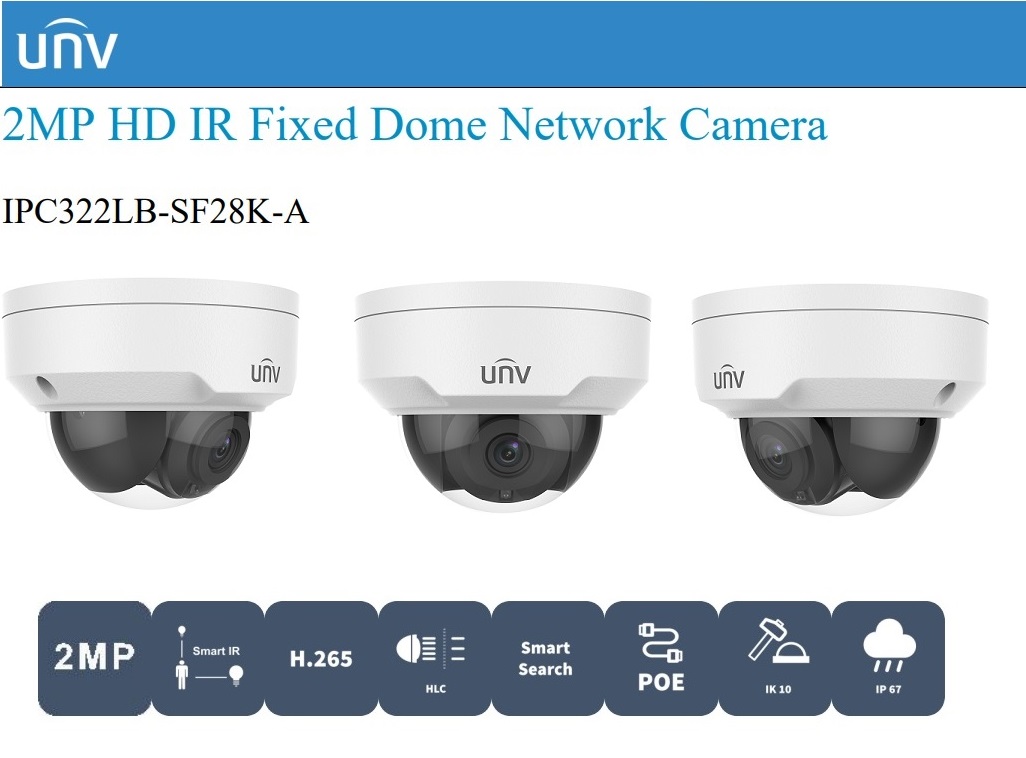

Uniview IPC322LB-SF28K-A 2MP HD IR Fixed Dome Network Camera

Camera
Sensor: 1/2.9", 2.0 megapixel, progressive scan, CMOS
Min. Illumination: Colour:0.01 lux (F2.0, AGC ON), 0 lux with IR
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 ~ 1/100000s
WDR: DWDR
S/N: >55dB

Lens
Lens type: [email protected]
Iris: Fixed
Field of View (H): 101.1°
Field of View (V): 55.0°
Field of View (D): 111.0°
Adjustment angle: Pan: 0° ~355°, Tilt: 0° ~ 75°

DORI
DORI Distance:
Lens (mm): 2.8
Detect (m): 45.0(147.6ft)
Observe (m): 18.0(59.1ft)
Recognize (m): 9.0(29.5ft)
Identify (m): 4.5(14.8ft)

Illuminator
IR Range: Up to 30m (98 ft) IR range
Wavelength: 850nm
IR On/Off Control: Auto/Manual

Video
Video Compression: Ultra H.265,H.265, H.264
H.264 code profile: Baseline profile, Main profile, High profile
Frame Rate:
Main Stream: 2MP (1920*1080),Max 30fps; 720P (1280*720),Max 30fps
Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
Video Bit Rate: 128 Kbps~6144Kbps
U-code: Support
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas per scene
ROI: Up to 8 areas
Video stream: Dual streams

White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction: 2D/3D DNR
Smart IR: Support
Flip: Normal/Flip Vertical/Flip Horizontal/180°
Dewarping: N/A
HLC: Support
BLC: Support
Defog: Digital Defog

Events
Basic Detection: Motion detection
General Function: Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Storage
Edge Storage: Micro SD, up to 128 GB

Network
Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP,RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, Qos, ,SSL/TLS
Compatible Integration: ONVIF (Profile S,Profile T,Profile G),API,SDK
User/Host: Up to 32 users. 2 user levels: administrator and common user
Security: Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2 , WSSE and digest authentication for ONVIF
Client:
EZStation
EZLive
EZView
Web Browser:
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+

Interface
Audio I/O: N/A
Alarm I/O: N/A
Serial Port: N/A
Built-in Mic: N/A
Built-in Speaker: N/A
WIFI: N/A
Network: 1 * RJ45 10M/100M Base-TX Ethernet
Video Output: N/A

Certification
EMC: CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety: CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection: IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
IK10 (IEC 62262:2002)

General
Power:
DC12V(±25%) , PoE(IEEE 802.3af)
Power consumption: Max 5W
Power Interface: Ø 5.5mm coaxial power plug
Dimensions: (Ø x H)    Φ109 x 81mm (Ø4.3” x 3.2”)
Weight: 0.358kg(0.79lb)
Material: Metal + Plastic
Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge protection: 4KV
Reset button: N/A
