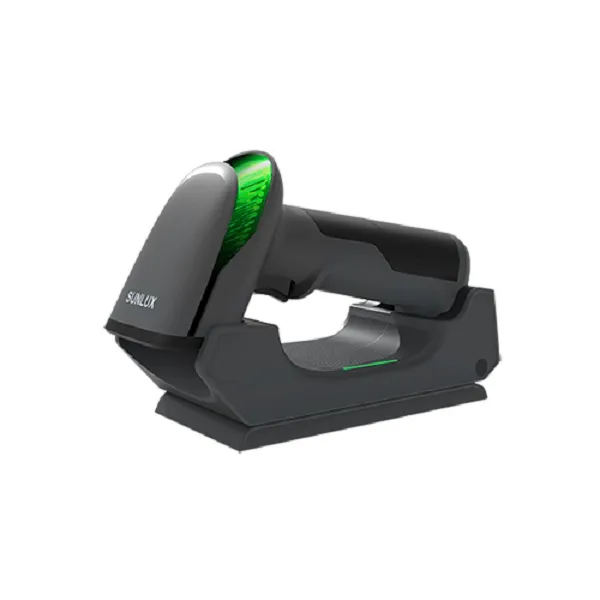

SUNLUX XL-9620C 2D Wireless Barcode Scanner with Charging Base

Performance Parameters
light source: White LED Lighting) Red LED (Aiming)
CPU: 32bit ARM
Scan mode: Manual trigger & Automatic induction
Image sensor: CMOS
COMS resolution: 640x480 Pixels
Scanning speed: 60 fps
System supported: Android/Windows/Linux/IOS
Minmum resolution: 24mil
Scanning angle: rotate 360", inclination 65", elevation 60"
Decoding depth of field: 50-390mm(13mill code39)
Decoding capability:
1D: Codabar, Code11, Code 39. Code32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code03,
Code 128, GS1-128, UPC-A, UPC-E, EAN 8, EAN 13, GS1 DataBar RSS14), GS1 DataBar Limited,
GS1 DataBar Expanded, etc
2D: PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec Code

Physical Parameters
Size: Scanner: L*W*H= 147,790.662 8(mm) Charging base: L*W*H=164.7*71.1*52.6(mm)
Weight: Scanner 188.4g Charging base 318.3g
Material: ABS+PC
Input voltage: DC 5V
Working current: 250mah
Stand-by current: 90mA
Indicator: LED indicator light, buzzer
Interface: USB/USB-VCP
Charging way: Charging on base; Charging with Type-C interface
Charging time: 4.5H
Standby time: 6 months(Dormant state)
Continuous battery life: 27H
Battery: Replaceable & Rechargeable lithium battery, 2600mAh
Receiver interface: USB

Other Parameters
Communication methods: 24G wireless communication, Bluetooth wireless communication
Communication distance: 24G mode: 100M (open space) Bluetooth mode: 10M (open space)
Humidity (Operating): Relative humidity 5%-95% (no condensation)
Temperature: -10°C-50°C (Operating). -20°C-60°C (Storage)
Light source: 0-5000Lux(fluorescent), 0-100,000Lux(Sunlight
