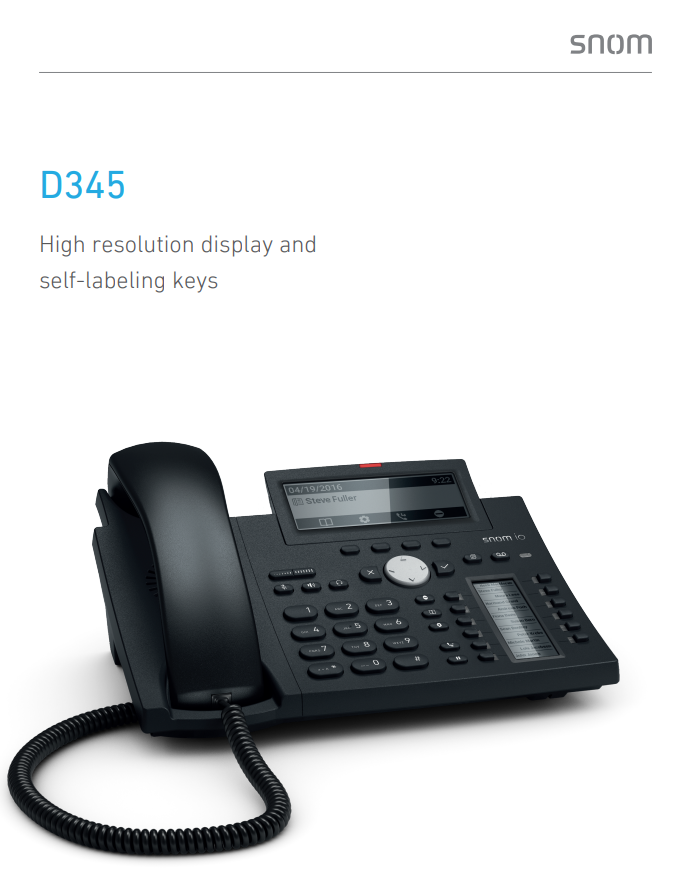

The D345 is a high quality office phone supporting 12
identities in an elegant, traditional style that has been
designed with the requirements of the IT service provider
in mind. Call and feature management, editable
call lists, and an address book are provided by the high
resolution grap hical display. The new Snom sensor
hook switch has been designed for durability and reduced
wear and helps to ensure a long product life even
when the phone is used extensively.
Flexible Placement
The D345’s flexible design makes it suitable for use in
a wide variety of environments, including offices, call
centers, and reception areas. The D345 can be used as
a desk phone, its gently inclined, European-style keyboard
making it ideal for easy dialing with minimal impact
on the user’s hand, and it can also be wall mounted
without the need for any additional hardware.
Function Key Display
The second screen supports four virtual pages, offering
48 programmable keys with multicolored LEDs
for a large number of contacts and other functions. A
dedicated key makes the navigation through the pages
easy and seamless. The number of extensions can be
increased by the use of up to three Snom D3 expansion
modules.
Extensive Connectivity
The high-speed USB port enables the user to connect a
variety of accessories such as D3 expansion modules or
Wi-Fi sticks. In addition, the D345 has a gigabit Ethernet
switch for connectivity to gigabit Ethernet LANs and
VPN clients to increase value through the integration of
an additional security layer.
Benefits
· High resolution graphical display
· Second display for self-labeling LED keys
· Wall mountable
· Sensor hook switch
· Digital signal processor (DSP) enhanced audio quality
· 2-port Gigabit Ethernet switch (RJ45)
· Power over Ethernet IEEE 802.3af, Class 3
· USB headset-ready
· D3 Expansion module-ready(1)
· USB WiFi stick support (RT2070/RT3070 chipsets)(1)
· Electronic Hook Switch (EHS)(1) support
for wireless headsets
Features
· 12 SIP identities / accounts
· XML browser
· Call lists for dialed, received, missed calls
· Local directory with 1000 entries
· Multiple language support
· DTMF in-band / out-of-band / SIP-INFO
· Interoperable with all major IP-PBX platforms
Call Features
· Speed dialing
· URL dialing
· Local dial plan
· Automatic redial on busy
· Call completion (busy/unreachable) (2)
· Caller identification
· Call waiting
· Call blocking (deny list)
· Auto answer
· Hold
· Music on hold(2)
· Handling of up to 12 simultaneous calls
· Blind and attended transfer
· Call forwarding
· 3-way conferencing on the phone
· Extension monitoring, call pickup(2)
· Call park, call unpark(2)
· Multicast paging
· DND mode (do not disturb)
· Keyboard lock
· Client matter code (CMC)(2)
· Unified Communications ready
Audio
· Codecs:
· G.711 A-law, μ-law
· G.722 (wideband)
· G.726, G.729AB, GSM 6.10 (FR)
· Built-in assignable ringtones
· Comfort noise generator (CNG)
· Voice activity detection (VAD)
Set-up
· Configurable through web interface
· Provisioning:
· Automatic loading of settings via HTTP/HTTPS/TFTP
· DHCP Options 66/67
· Snom Redirection Service
· Remote management via TR-069 / TR-111
Protocols
· SIP (RFC3261)
· DHCP, NTP
· HTTP / HTTPS / TFTP
· LDAP (Directory)
· Dual Stack IPv4 / IPv6
User Interface
· Localization (language, time, dial tone)
· Red LED for call indication / message waiting
· 4 context-sensitive keys
· 12 (48) configurable self-labeling LED keys
· Dedicated message key
· Audio keys: Mute, speakerphone, headset, volume
· 4-way navigation key, OK and cancel keys
· Menu-driven user interface
Security
· 802.1X authentication and EAPOL
· Transport layer security (TLS)
· SRTP (RFC3711), SIPS, RTCP
· HTTPS server/client
· Password-protected web interface
· VPN-support
· VLAN (IEEE 802.1Q)
· LLDP-MED, RTCP-XR
Phone Features
· Dimensions (approx.): 250x185x120 mm (LxWxH)
· Weight (approx.): 880g
· Input voltage: 5V DC (SELV)
· Power supply: PoE or 5V DC power adapter(1)
· Handset: 4P4C connector
· Headset: 4P4C connector
· Hearing aid compatible (HAC) handset
· 1 x USB 2.0 host port, type A, Hi/Full/Low-Speed
· Environmental conditions:
· Ambient temperature: 0°C to 35°C (32°F to 95°F)
· Storage temperatur: -10°C to 45°C (14°F to 113°F)
· Humidity: 5% to 95% (non-condensing)
