Snom

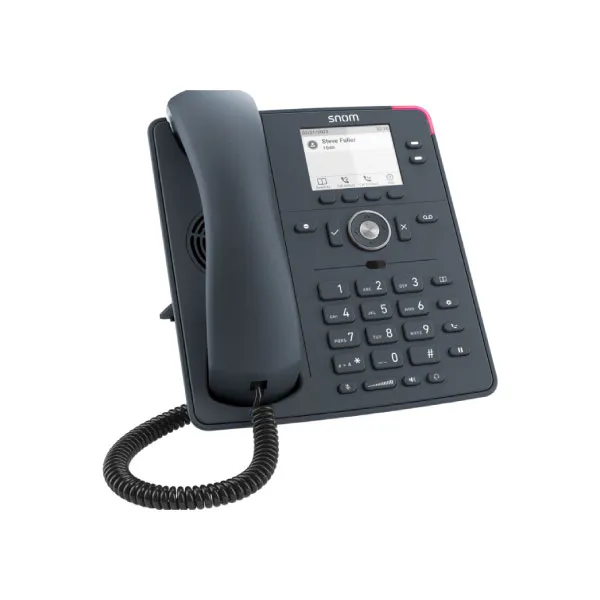

Snom D150 Desk phone
Tk
8500
SIP Identity/Account : 2
2.8″ TFT liquid crystal display backlit display
5 configurable function keys
2 Year Warranty
IP Phones
Basics
Product information
• IP desk phone D150 | slate gray | PN 00004652
• Operating system: Linux
• Placement: Indoor, desktop, wall mounting
Dimensions and weight
Dimensions (L × W × H, approx.) without foot stand
• 205 mm × 185 mm × 40 mm
Dimensions (H × W × D, approx.) with foot stand
• 205 mm × 185 mm × 220 mm (high angle 46°)
• 205 mm × 185 mm × 200 mm (low angle 28°)
Weight (approx.)
• 710 g without foot stand
• 830 g with foot stand
Display and Indicators

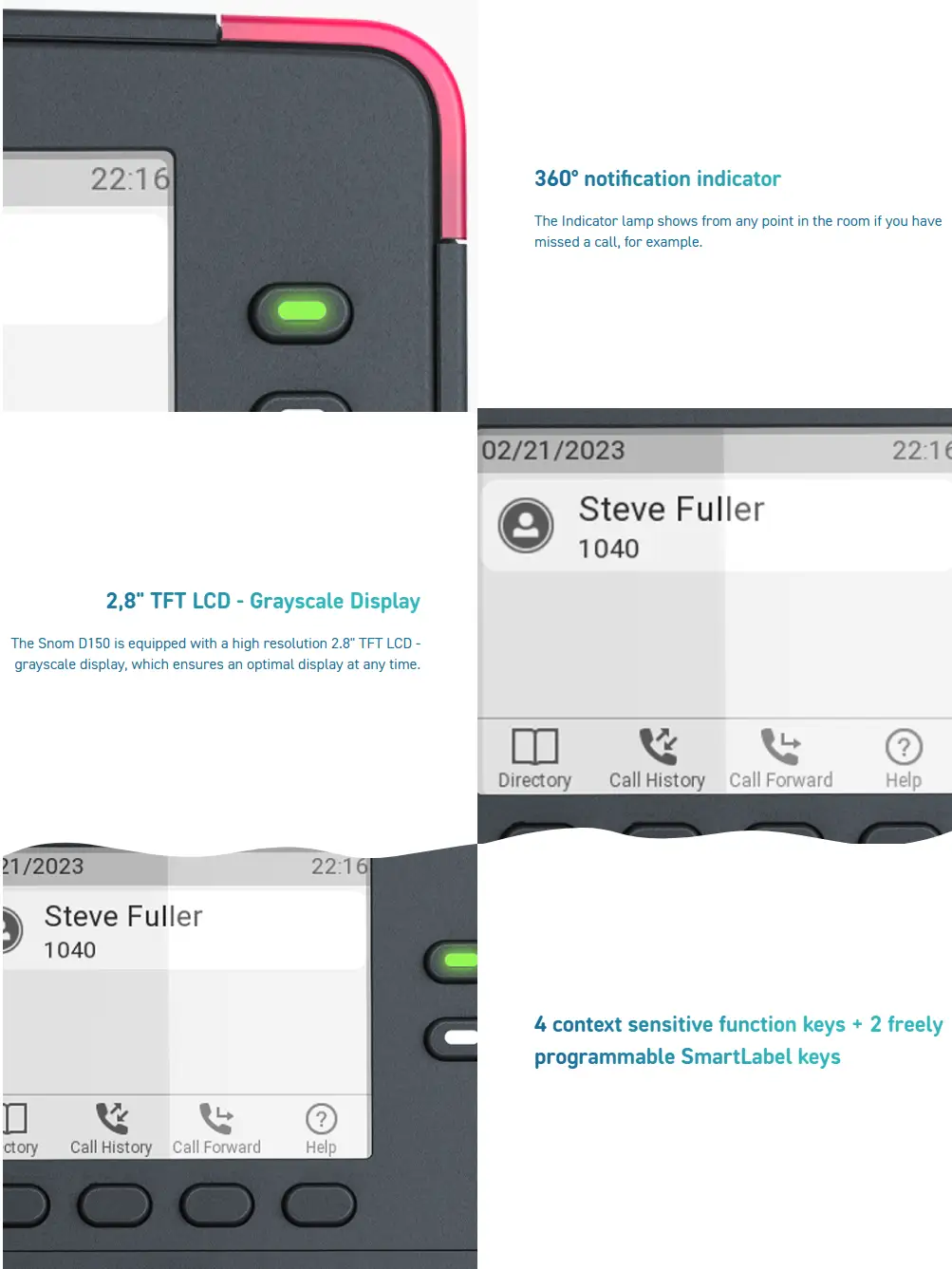

Display
• TFT liquid crystal display (LCD): graphical, grayscale, backlit
• Size (diagonal): 2.8″ (67 mm)
• Size (W × H): 59 mm × 33 mm
• Resolution: 320 × 240 pixel
3 LED indicators
• Call status indication: 1 red LED
• Function key status indication: 2 multicolor LEDs
Keypad and Function Keys
36 hard keys in total
• 12 keys (standard ITU telephone keypad)
• 4 context-sensitive function keys
• 5-way navigation key
• 2 Smart Label keys (with multicolor LED)
• 5 dedicated audio keys
◦ Mute
◦ Speakerphone
◦ Headset
◦ Volume + / - (rocker)
• 8 dedicated function keys
◦ DND
◦ Ok
◦ Cancel
◦ Message
◦ Directory
◦ Menu
◦ Transfer
◦ Hold
◦ Keyboard lock
Interfaces and connections
Power options
• Power over Ethernet (PoE)
◦ IEEE 802.3af, class 1|IEEE 802.3az³
• Power adapter¹
◦ 100 - 240 V AC, 50 - 60 Hz | 5 V DC (SELV), 2 A, 10 W
Wired interfaces
• Power adapter:¹ coaxial power connector (socket)
• Network connectivity: 2 × RJ45-8P8C (NET/PC) sockets → Gigabit Ethernet (GbE)
• Corded handset: RJ9-4P4C socket
• Headset:¹ RJ9-4P4C socket
• EHS adapter:¹ RJ12-6P6C (EHS) socket
Sensors
• Hook switch sensor
Audio Devices, Codecs and features
Casing microphone | Casing speaker
• Speakerphone mode: Full duplex
Corded handset
• Microphone | Handset earpiece
• Hearing aid compatible (HAC)
Audio codecs
• G.711 (A-law, μ-law), G.722, G.726, G.729, G.729A, G.729AB, GSM 6.10 (FR)
Dual-tone multi-frequency signaling (DTMF / RFC2833)
• SIP-INFO
• in-band
• out-of-band
Related features
• Built-in assignable ringtones
• Comfort Noise Generator (CNG)
• Voice Activity Detection (VAD)
Network Technologies and Protocols
Network technologies
• OpenVPN, VLAN (IEEE 802.1q)
VoIP related protocols and techniques
• SIP, SDP, RTP, RTCP, RTCP-XR, SIP REFER method (RFC 3515), rport (RFC 3581), ENUM, ICE, STUN
Secure VoIP protocols
• SIPS (SIP over TLS), SRTP, SRTCP
Network protocols
• IPv4 / IPv6 (dual stack), DHCP, NTP, LDAP, LLDP-MED, HTTP, TFTP, L2TP
Secure network protocols
• TLS V1.2, HTTPS, IEEE 802.1X (EAPoL)
Remote management protocols
• TR-069, TR-069 Annex G (formerly TR-111), TR-369 (USP)
Directory Support and Call Features
2 SIP identities / accounts
• Up to 2 simultaneous calls
Directory support
• LDAP (server-based directory)
• Local directory with up to 1,000 entries
Outgoing call features
• Speed dialing via function keys
• URL dialing
• Local dial plan
• Redial (via dialed calls list)
• Automatic redial on busy
• Caller identification (CLIP)
• Calling Line Identification Restriction (CLIR)
• Call completion (busy/unreachable)²
• Intercom
• Multicast paging
Incoming call features
• Call waiting/swapping
• Call barring / blocking: deny list, anonymous calls, Do Not Disturb (DND) mode
• Auto answer
• Call diversion
• Call deflection
Connected call features
• Mute microphone
• Hold
• Music on hold²
• Blind call transfer
• Attended call transfer
• 3-way (2+1) local conferencing
• Call park / unpark²
• Client Matter Code (CMC)²
Related features
• Call history lists of missed, received, dialed, rejected, and deflected calls
• Extension monitoring (Busy lamp field), call pickup²
User Interfaces and Setup
Configuration and setup via menu-driven web user interface (WUI)
• Password-protected login
• Secure web server/client (HTTPS)
Configuration and setup via menu-driven phone user interface (PUI)
Customization: XML browser
Automatic configuration via provisioning
• Loading of settings and firmware via HTTP, HTTPS, TFTP
• Supported DHCP provisioning options 66 / 67
• Secure Redirection And Provisioning Service (SRAPS) support
• Plug & Play (PnP) support
• Remote management via TR-069 / TR-069 Annex G (TR-111) / TR-369 (USP)
Localization
• Languages
• Time zone, dial tone
Diagnostic
• SIP / PCAP trace
• Syslog
Environmental Conditions
Operating ambient temperature
• 0 °C - +35 °C
Nonoperating (storage) temperature
• -10 °C - +45 °C
Humidity (non-condensing)
• 5 % - 95 %
¹Available separately
²If supported by PBX
³Optional via software
