The Saramonic UwMic9 Kit1 UHF Wireless Lavalier Microphone System provides stable, interference free audio in portable, compact and low cost package. This system is a perfect fit for DSLR videography, field recording and interviews, broadcast TV, ENG, providing dependable audio broadcasting and recording.

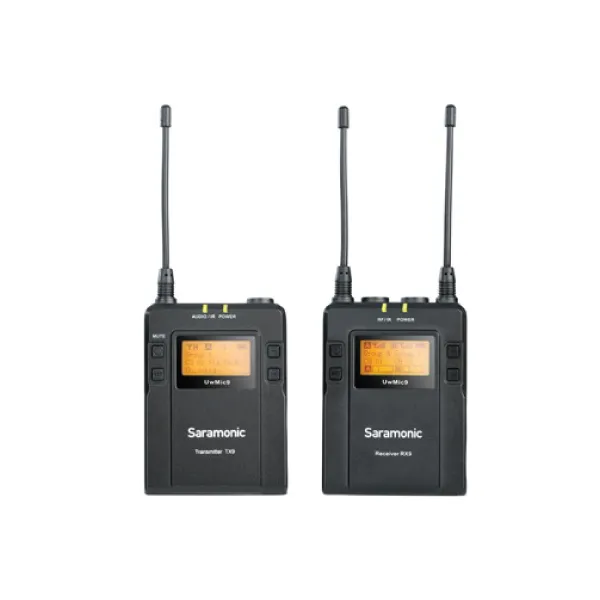

The system includes a camera-mountable wireless receiver, a wireless body-pack transmitter and clip-on lavalier mic.
Receiver (x1)
The Saramonic UwMic9 RX9 is a camera-mountable integrated wireless receiver. It features a wide switching RF bandwidth, an easy-to-read LCD display and infrared synchronization between transmitter and receiver.
Equipped with an auto-scan function, the RX9 can automatically search for an available transmission frequency. The headphone jack enables real-time monitoring or the receiver via headphones, especially useful for cameras that lack a monitor output.
Transmitter (x1)
This compact transmitter UwMic9 TX9 employs a crystal-controlled PLL synthesizer. It is equipped with a muting function and a BMP-type mic input. The RF power output can be switched among high, middle and low.
Channels: | 96 |
Groups: | A or B |
Oscillator Type: | PLL Synthesizer |
Frequency Range: | 514 MHz – 596 MHz |
Reference Deviation: | +/- 5 kHz (-60dBV, 1kHz input) |
Signal to Noise Ratio: | 70 dB or more |
Spur Suppression: | -60 dB |
Voice Delay: | 12 ms |
Antenna: | 1/4λ wire antenna |
Audio input connector: | TX9:3.5mm mini jack
HU9: none TX-XLR9: XLR-3-11C type (female) |
Reference audio input level: | -60dBV (MIC input, 0dB attenuation) |
Distortion: | 0.5% or less |
Weight: | TX9: Approx. 211.4g (excluding batteries)
HU9: Approx. 338.2g (excluding batteries) TX-XLR9: Approx. 138g (Excluding batteries) |
Battery: | Two AA size batteries |
Dimensions: | TX9: 170.9 x 63.5 x 30.0 mm HU9: 254.0 x 52.0 x 52.0 mm TX-XLR9: 105.5 x 43 x 34.7 mm |
Operating temperature: | 0℃ to 50℃ |
Storage temperature: | -20℃ to +55℃ |
Channels: | 96 |
Groups: | A or B |
Oscillator Type: | PLL Synthesizer |
Audio output connector: | 3.5mm mini jack |
Antenna: | 1/4λ wire antenna |
Audio output level: | -60dBV |
Headphone output level: | 30mW (16Ω) |
Receiver frequencies: | 514 MHz – 596 MHz |
Signal to Noise Ratio: | 70 dB or more |
Voice Delay: | 12 ms |
Reference Deviation: | +/- 5 kHz (-60dBV, 1kHz input) |
Frequency response: | 40Hz to 18kHz (+/-3dB) |
Distortion: | 0.5% or less |
Spur Suppression: | -60 dB |
Weight: | 218.7g (Excluding batteries) |
Battery: | Two AA size batteries |
Dimensions: | 170.9 x 63.5 x 30.0 mm |
Operating temperature: | 0℃ to 50℃ |
Storage temperature: | -20℃ to +55℃ |
