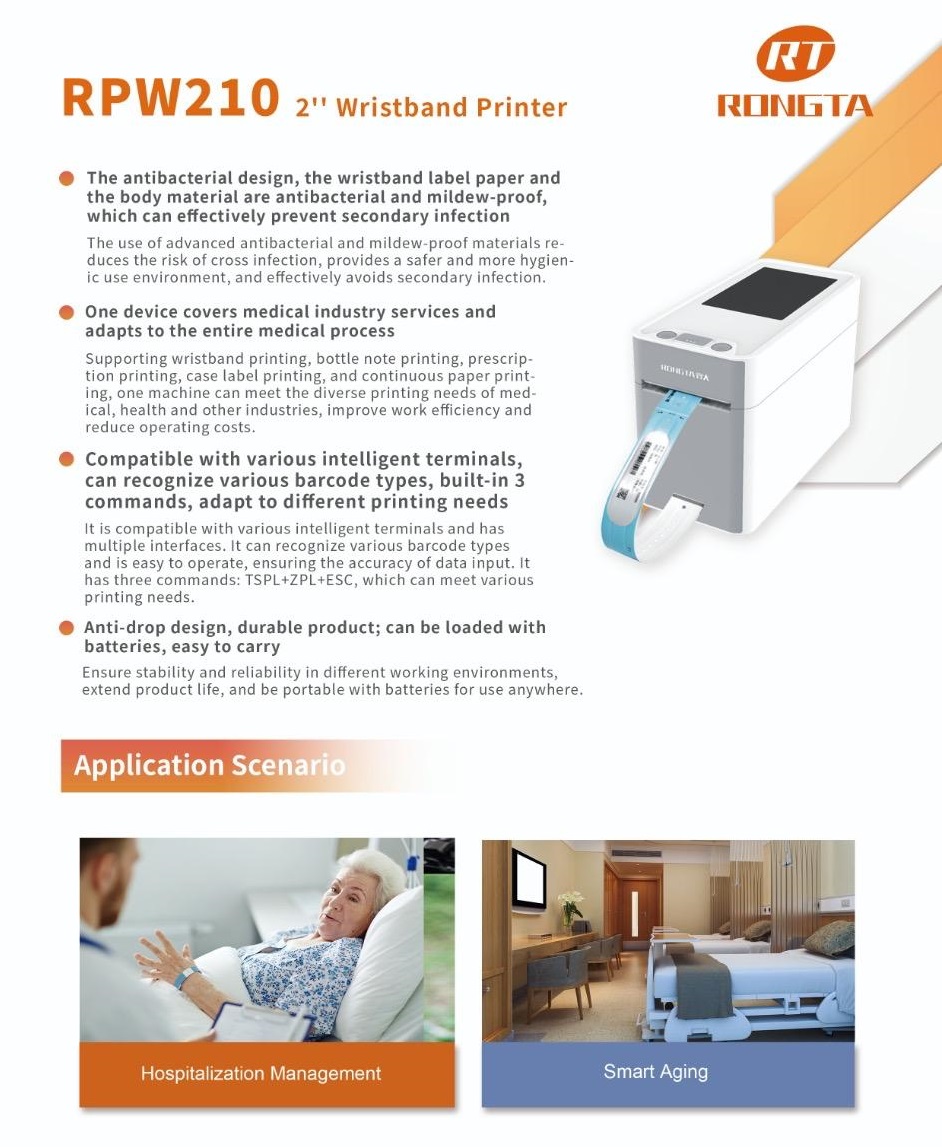

• Wristband label paper and body material are antibacterial and mildew-proof, which can effectively avoid secondary infection.
Adopt advanced antibacterial and mildew-proof materials to reduce the risk of cross infection, provide a safer and more hygienic medical environment, and effectively avoid secondary infection.
• One machine covers medical industry services and adapts to the entire medical process.
Supports wristband printing, bottle label printing, prescription printing, case label, and continuous paper printing. One machine can meet the diverse printing needs of medical, health and other industries, improve work efficiency, and reduce operating costs.
• Compatible with various smart terminals, can recognize a variety of barcode types, Supports Three Types of Commands, adapt to different printing needs.
Adapt to various smart terminals, multiple interfaces are optional, can recognize a variety of barcode types, easy to operate, ensure the accuracy of data input, TSPL+ZPL+ESC three instructions, adapt to various printing needs.
• Anti-drop design, durable product; can be equipped with batteries, easy to carry.
Ensure stability and reliability in different working environments, extend product life, equipped with a battery for portable use, allowing for use anywhere.
Application scenarios: healthcare.
Print
Printing method: Thermal
Resolution: 203dpi
Maximum print width: 2.2''(56mm)
Maximum printing speed: 6 ips(150mm/s)
Print length: 0.79''-15.75''(20-400mm)
Sensor: Seam mark detection, black mark detection, paper shortage detection, backflow detection, cover opening detection, head temperature detection
Medium
type: Wristband label, Bottom black mark, continuous paper, folding paper
Width (label + backing paper): 2.56''(65mm)(MAX)
Thickness (label + backing paper): 0.0023''-0.0071''(0.06mm~0.18mm)
Maximum paper roll diameter: φ3.94''(φ100mm)
Reel inner diameter: φ1''(φ25mm(MIN))
Paper tearing method: Manual tearing
Processor: 32-bit ARM MCU
Storage
RAM: 8MB
FLASH: 8MB
Function
button: Power switch, pause button, FEED button, paper bin cover opening button
Indicator Lights: YES
buzzer: Buzzer tone
Display: /
other: First sheet returned, reprinting due to lack of paper
Communication interface: USB + Ethernet
Programming language: TSPL + ZPL + ESC
Built-in fonts
ASCll Font: 5x9, 7x11, 10x18, 15x28, 13x26, 40x60, 13x21, 10x12, 14x20, 16x24, 24x32, 36x48, 14x19, 21x27, 14x25, 12x24
GB18030: 16x16, 24x24
Code Page
Extended character table: CP437, CP850, CP852, CP860, CP863, CP865, CP866, WPC1250, WPC1251, WPC1252, WPC1253, WPC1254
Barcode
1D: Code39, Code39C, I25, Code93, ITF25, EAN128, Code128, Codabar, EAN-8, EAN8+2, EAN8+5, EAN -13, EAN13+2, EAN13+5, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPCE+5MSIC, ITF14, EAN14, Code11
2D: QRCODE, PD417, DateMatrix
Software
drive: XP, Win7, Win8, Win10, Win11, ios, Android
SDK: Android, iOS, Windows
Label design: Barcode label editing software (PC), APP
Power adapter
Input: AC 100-240V, 50/60Hz
Output: DC 24V/2.5A
Environmental parameters
Work: Temperature: 32-104℉(0-40℃); Humidity: 20-90% (non-condensing)
storage: Temperature: 14-140℉(-10-60℃); Humidity: 5-95% (non-condensing)
Physical parameters
Dimensions (length, width, height): 104mm*210mm*143mm
weight: 1.5kg
Accessories
Standard: Power cord, USB data cable, power adapter, quick installation guide, certificate of conformity
Optional: Battery
Standard: CCC, CE, FCC
