Tk
11000
1. Simple and elegant, with high optical mirror and sticks appearance
2. Internal important parts are with metal material
3. Easy paper loading, with auto cutter, full cut/partial cut optional
4. 250mm/s high printing speed, rapidly change supplies, improve work efficiency

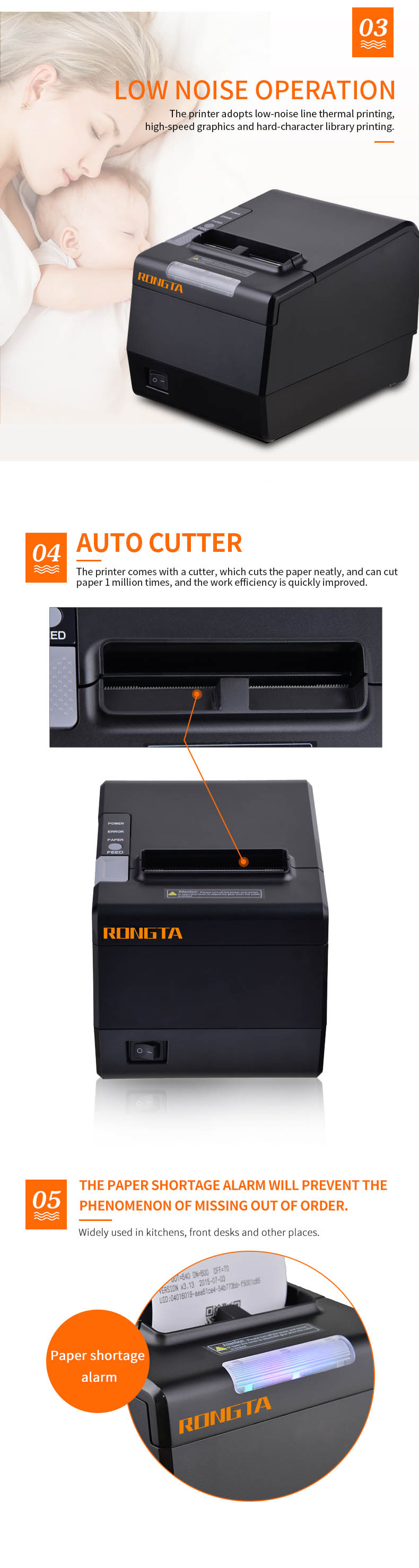

5. With auto cutter, paper out alarm
6. Parallel, serial, USB, Ethernet Optional multiple interfaces (supports two in one, or three in one)
7. Paper end sensor, paper near end sensor (for flat)
8. Support flat, wall-mount
9. Low noise, support high speed graphics and hardware fonts printing
10. Widely used in kitchen, front desk and other places

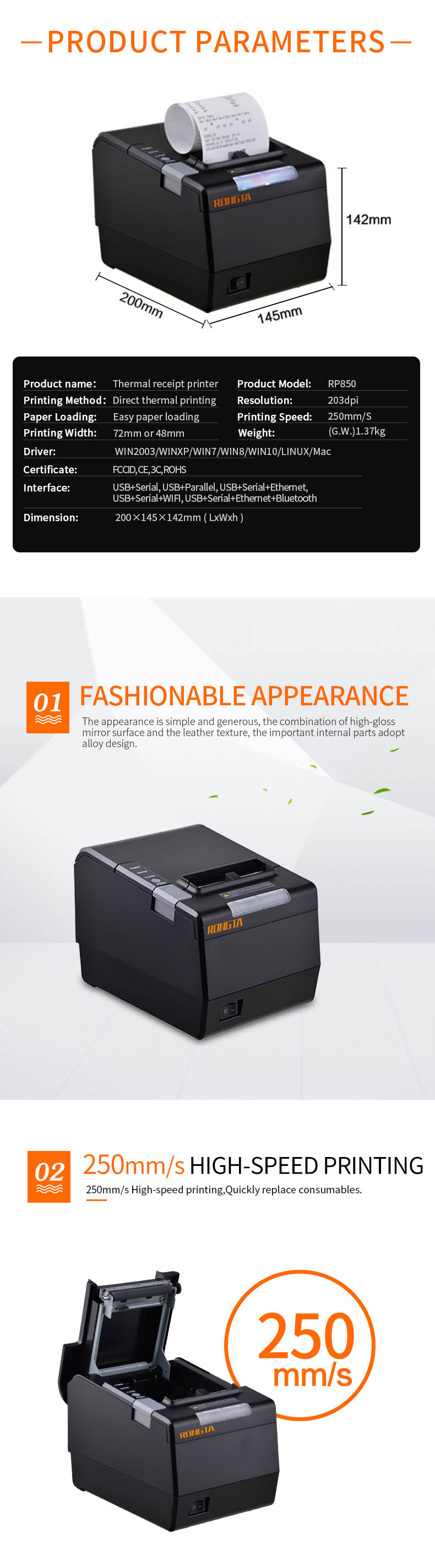

Printing method | Direct thermal printing | |
Effective printing width | 72mm or 64mm | |
Resolution | 203dpi(8 dots/mm) | |
Printing speed | 250mm/s | |
Printing density | 384 dots/line or 576 dots/line | |
Character set | GB18030 (Simplified Chinese) | |
Print font | ASCII Font A:12×24 | |
ASCII Font B:9×24 | ||
Chinese: 24×24 | ||
Character per line | Font A-42 lines or 48 lines/Font B-56 lines or 64 lines/Chinese-21 lines or 24 lines | |
Paper specification | Paper width | 79.5±0.5mm |
Paper roll diameter | Φ80mm | |
Paper loading | Easy paper loading | |
Barcodes | Barcode type | UPC-A,UPC-C,EAN-13,EAN-8,CODE39, ITF,CODEBAR,CODE93,CODE128 |
Reliability | Thermal printing head | 150km |
Auto cutter | 2 million cuts | |
Interface | USB, Serial, Parallel, Ethernet | |
Paper out detection function | optional | |
Emulation | ESC/POS/OPOS | |
Driver | WIN2003/WINXP/WIN7/WIN8/WIN10/LINUX/Mac | |
Power supply | DC 24V,2.5A | |
Cash drawer Control | DC 24V,1A | |
Certificate | 3C、CE、FCCID 、ROHS、REACH、BIS | |
Dimension (LxWxH ) | 195×145×148mm | |
Environment | temperature | working temperature: 0~45℃ |
Storage:-10~60℃ | ||
humidity | working humidity: 20-90% | |
Storage:10-90%(paper exclused) |
