Rongta

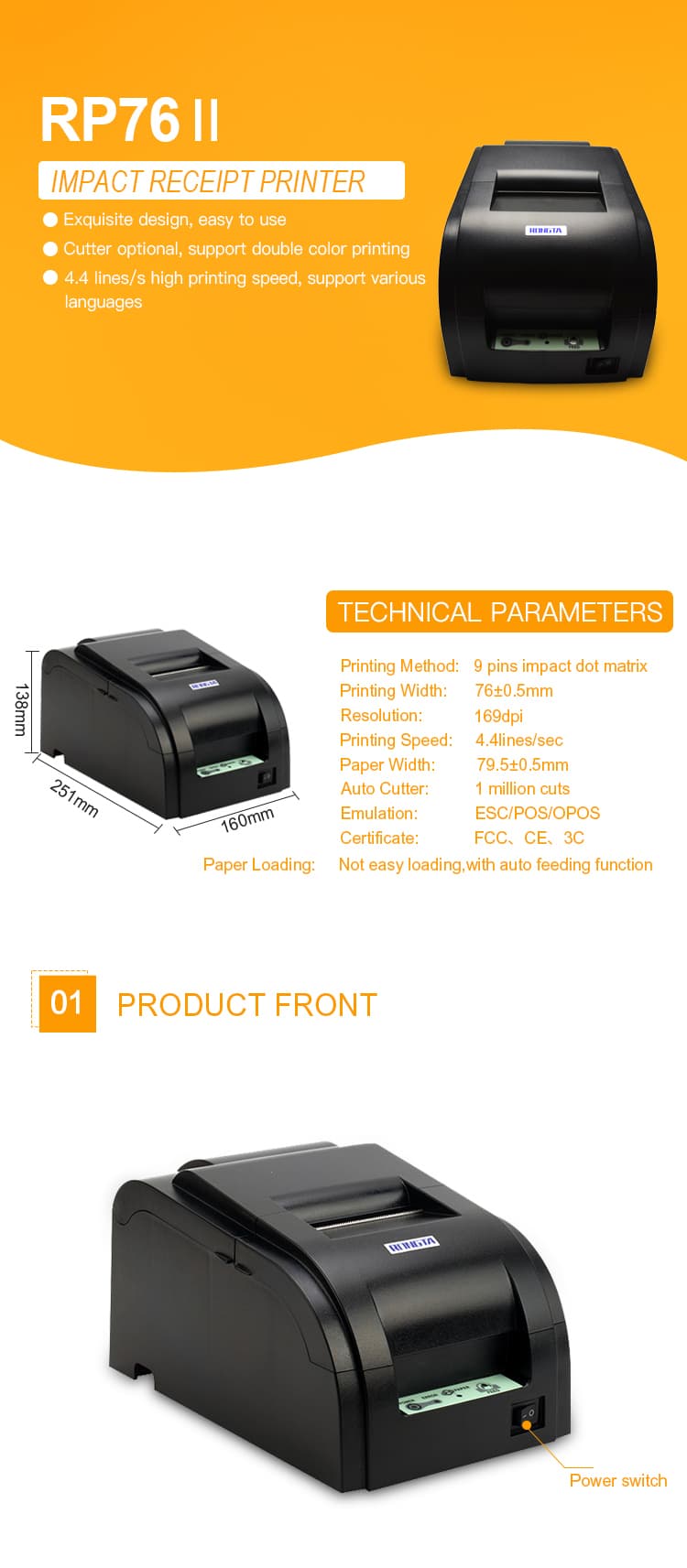

Rongta RP76IIDC-USE Impact Dot Matrix Receipt Printer

19000

Printing Speed: 4.4lines/sec

Paper width: 76±0.5 mm

Resolution : 169dpi

Cash Drawer port

Print

Printing Method: 9 pins serial impact dot matrix

Printing Speed: 4.4lines/sec

Printing density: 210 dots(whole dots)/420 dots (half dots)

Effective Printing Width: 42CPL(7X9)/35CPL(9X9); 40CPL(7X9)/33CPL(9X9)

Detection Method

Paper out alarm: Support

Overheat protection: Support

Black mark printing: Support

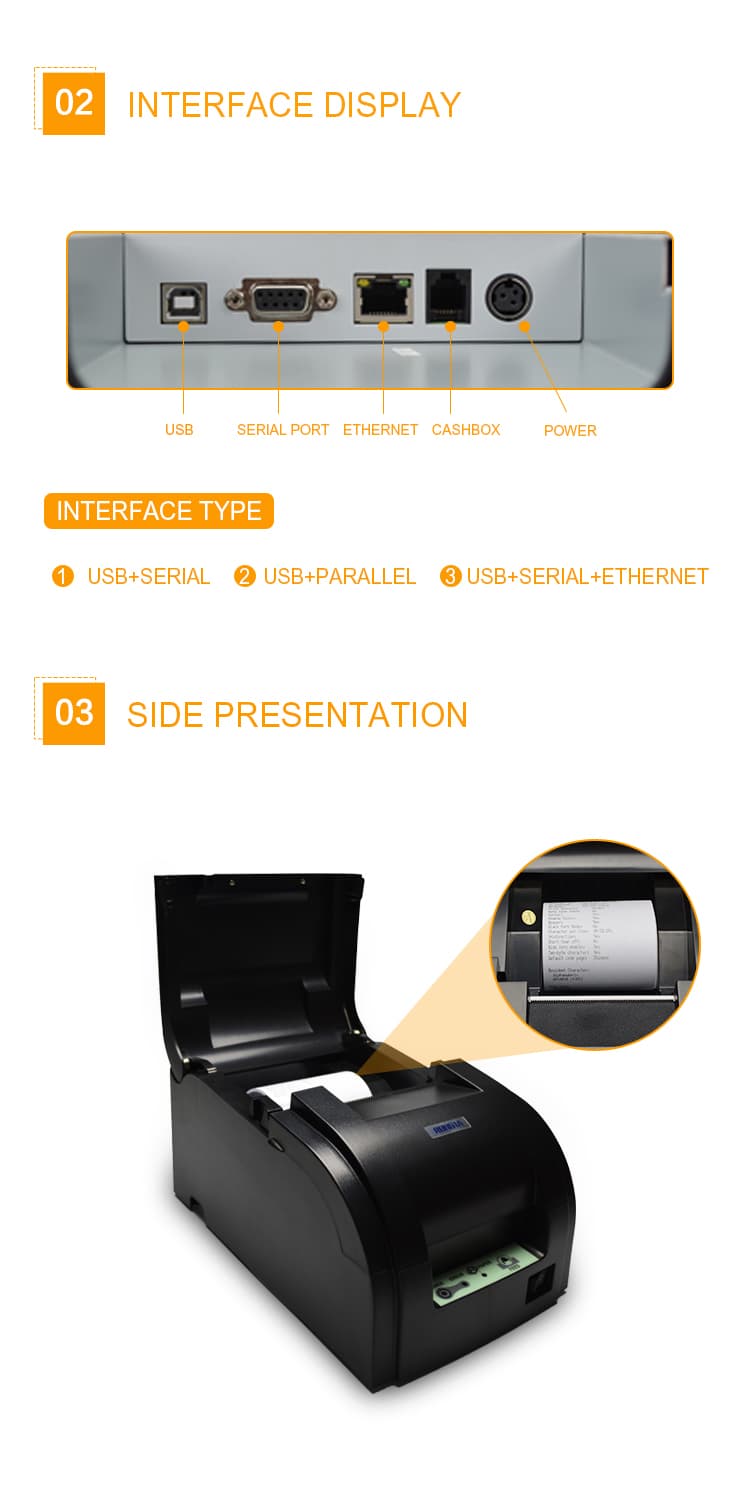

Interface: USB, Serial, Ethernet

Drawer port: 1 port, DC24V, 1A, 6 line RJ-11 socket

Reliability

MCBF: 9,000,000 lines

Power Supply

DC power supply: Input DC 24V/2.5A

Ribbon

Ribbon cassette: ERC-39 color: purple/ black/ red and black double ribbon

Printing Paper

Paper type: High quality 1 layer ordinary continuous paper or 2-3 layers copy paper

Paper width: 76±0.5 mm

Paper Thickness:

Single-layer paper thickness:0.06-0.085mm

Multi-layer paper thickness: 0.05-0.08mm

Total thickness <0.20mm

Paper roll diameter: Ф75 mm (Outside Diameter); ф12 mm (Inside Diameter)

Paper loading way: Not easy loading, with auto feeding function

Paper cutting way: Manual tearing or auto cut

Physical

Operating Temperature (°C): 0 to 45

Operating Humidity (%): 20 to 90 (relative humidity)

Storage Temperature (°C): -100 to 60

Storage Humidity (%): 10 to 90 (relative humidity)

Dimension

Outer size(L x W x H): 251x160x138 (mm)

Application: Restaurants, Department Stores, Kitchens, Convenience Stores, Specialty Retails, Super markets
