Rongta

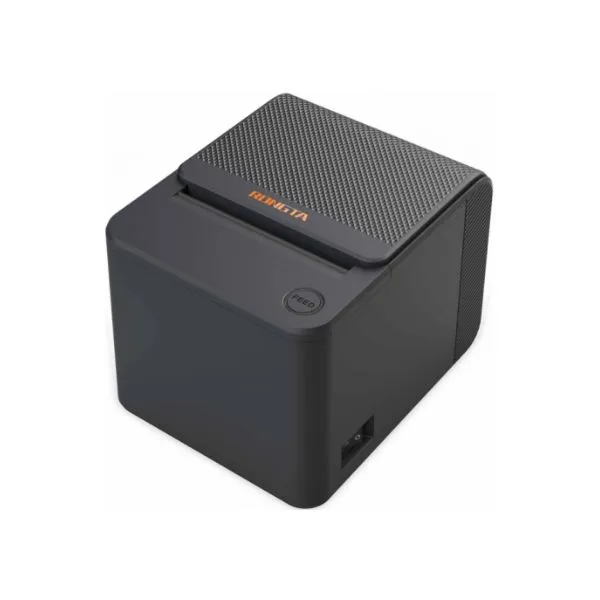

RONGTA RP336-UE THERMAL POS/RECEIPT PRINTER W/AUTO CUTTER USB/SERIAL INTERFACE
Tk
7000
Resolution: 203 Dpi
Print Method: Direct Thermal
Paper Wide: 80mm
Print Head Life: 100Km
Thermal Printer
Quantity:
•Simple and fashionable appearance, easy to operate
•Support paper-saving adjustment function
•High speed printing, automatic paper cutting
•Support wall-mounted function
•Ring Light alarm
•Built-in sound cavity design, volume up to 1 time
Print
Printing Method: Thermal Line
Printing Speed: 200mm/s
Resolution: 203dpi
Effective Printing Width: 72mm & 48mm
Printing Setting: Support adjustment for the header margin, line space, receipt width and barcode height
PCBA
Main chip: AT32F407RCT7
RAM: 96KB
FLASH: 256KB / 2MB
Character
Character Set: ANK,GB18030(Chinese)
Print Font: ANK: 12 x24,9x17, Chinese: 24 x 24
Character per Line: 48-font A/64-font B
Paper Spec
Paper Type: Thermal paper
Paper Width: 80mm
Paper Roll Diameter: Max: 80.0mm
Reliability
MCBF: 60 million lines
TPH: 100km
Barcodes: UPC-A，UPC-E，EAN-13，EAN-8，CODE39，ITF，CODEBAR，CODE93，CODE128
Paper Supply Method: Drop-in paper load
Emulation: ESC/POS
Driver: XP,Win7,Win8,Win10,iOS, Android, Linux，MacOS
Sensor: Paper End Sensor, Paper Near End Sensor(Optional)
Drawer Port: RJ11
Interface: USB+LAN
Power Supply (Adapter): AC100 ~240V(± 10%) DC 24V, 2.5A
Network
Wire: TCP/IP Ethernet interface (10M/100M)
Auto cutter
Type: straight knife
Life: 1,000,000 cuts
Physical
Printer Dimension: 156*125*120mm
Environment parameters:
Working temperature: -20℃—70℃ Working humidity: 0℃—40℃
Storing temperature : 5%—95% Storing humidity: 20%—85%
Remarks:
3PCS Orange light Normal
The light on Abnormal: The light flashes
Application: Restaurant, Department Store, Kitchen, Convenience Store, Specialty Retail, Super market
