Rongta

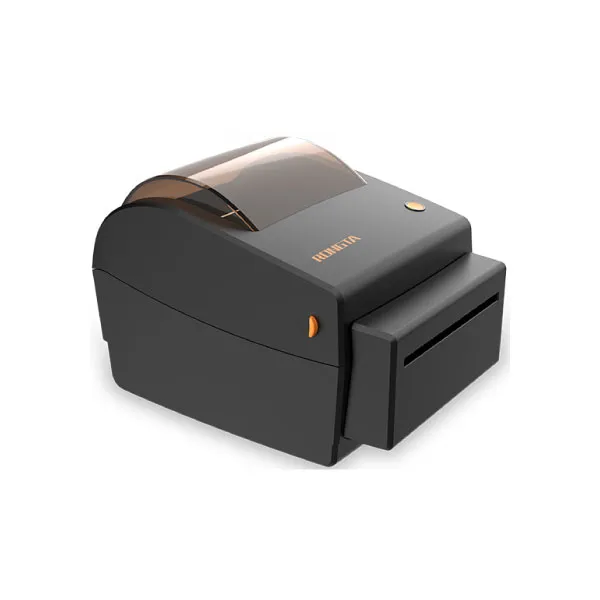

Rongta RP310U Thermal Label Printer with USB Interface
Coming Soon
Printing Method: Thermal
Resolution: 203dpi
Maximum Print width: 3.15"(80mm)
Maximum Printing Speed: 7 ips(180mm/s)
Thermal Printer
Print
Printing Method: Thermal
Resolution: 203dpi
Maximum Print width: 3.15"(80mm)
Maximum Printing Speed: 7 ips(180mm/s)
Print Length: 0.79"-7.87"(20-200mm)
Sensor: Seam mark detection, black mark detection, paper shortage detection, backflow detection, cover opening detection, head temperature detection
Medium
Type: Label paper, Black mark paper (bottom black mark), continuous paper, folding paper
Width (label + backing paper): 1.18"-3.35"(30-85mm)
Thickness (label + backing paper): 0.0023"-0.0071"(0.06mm~0.18mm)
Maximum Paper Roll Diameter: 4.13"(Ø105mm)
Reel Inner Diameter: 1"(Ø25mm), ~1.50"(Ø38mm)
Paper Tearing Method: Manual tearing
Processor: 32-bit ARM MCU
Storage
RAM: 2MB, 4MB (Bluetooth + USB), 8M(USB + Serial + Ethernet)
FLASH: 2MB (USB), 4MB (Bluetooth + USB)
Function
Button: Rocker switch, Feed button, Paper bin cover opening button
Indicator Lights: YES
Buzzer: Buzzer tone
Display: /
Other: Automatic paper recognition, reprinting when out of paper, first sheet return, bad pixel detection
Communication Interface: USB
Programming Language: TSPL+ESC, ZPL+ESC
Built-in Fonts
ASCII Font: 10x12, 14x20, 16x24, 24x32, 36x48, 14x19, 21x27, 14x25, 12x24
GB18030: 24x24
Code Page
Extended Character table: CP437, CP850, CP852, CP860, CP863, CP865, CP866, WPC1250, WPC1251, WPC1252, WPC1253, WPC1254
Barcode
1D: Code39, Code39C, 125, Code93, ITF25, EAN128, Code128, Codabar, EAN-8, EAN8+2, EAN8+5, EAN-13, EAN13+2, EAN13+5, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPCE+5, MSIC, ITF14, EAN14, Code11
2D: QRCODE, PDF417 (optional)
Software
Drive: XP, Win7, Win8, Win10, Win11, iOS, Android, Linux, MacOS
SDK: Android, iOS, Windows.
Label Design: Barcode label editing software (PC), APP
Power Adapter
Input: AC 100-240V, 50/60Hz;
Output: DC 24V/2.5A
Environmental Parameters
Work
Temperature: 32-104°F (0-40°C); Humidity: 20-90% (non-condensing)
Storage:
Temperature: 14-140°F(-10-60°C); Humidity: 5-95% (non-condensing)
Dimensions (length, width, height): 179mm150mm142mm
Weight: 1kg
Standard: Power cord, USB data cable, power adapter, quick installation guide
Optional: /
Certification: CCC, CE, UKCA
