Netgear

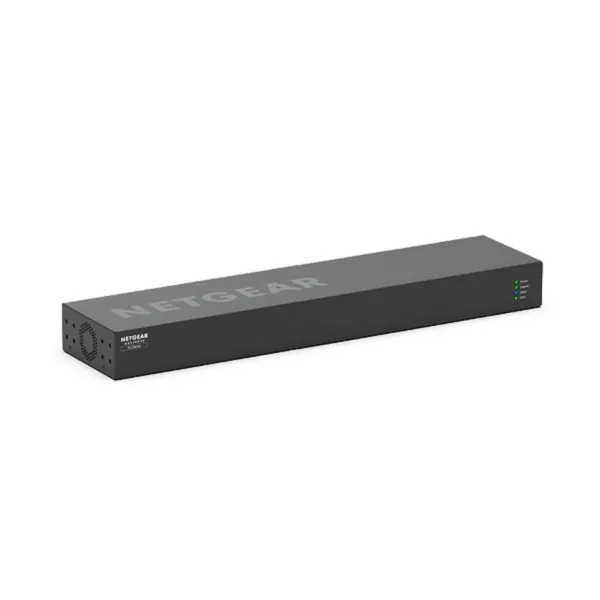

NETGEAR PR60X 1-Port 10G/Multi-gigabit (Configurable LAN/WAN) + 1-Port 2.5G/1G RJ-45 (WAN) + 3-Port 2.5G/1G (LAN) +1-Port 10G/1G SFP+ (LAN) Pro Router with Insight Cloud Management3
Ask For Price
Width: 440mm
Depth: 100mm
Height: 43.2mm
Weight: 3.34lb (1.513kg)
Netgear Ethernet Router

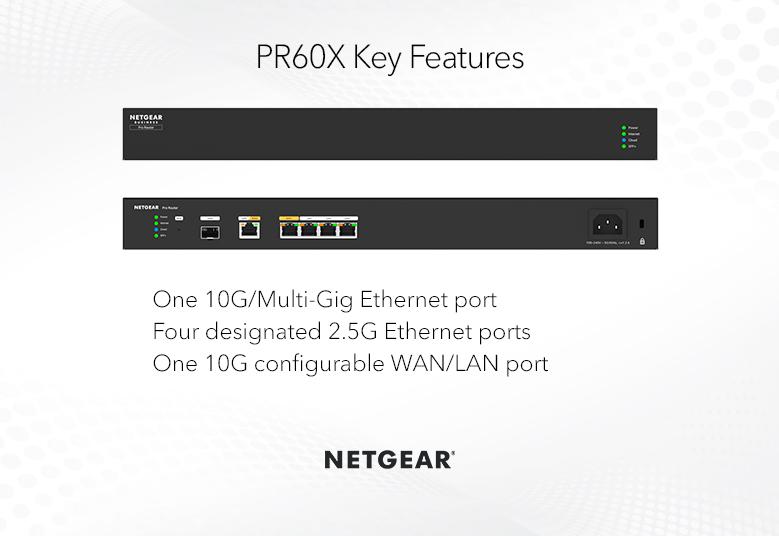

- • 10G/Multi-Gigabit and 2.5G Dual WAN ports with failover.
- • High performance hardware with one 10G/Multi-Gigabit Ethernet port, four 2.5G Ethernet ports and one 10G SFP+ port for long-distance backhaul.
- • Seamless integration with NETGEAR Pro WiFi Access Points and select Smart switches through NETGEAR Insight Cloud Management.
- • Control, manage and monitor through NETGEAR Insight.
- • Rack-mountable for placement in industry-standard enclosures.
- • Firewall protection.
- • IPSec configuration to create secure site-to-site VPN connections.
Width: 440mm
Depth: 100mm
Height: 43.2mm
Weight: 3.34lb (1.513kg)
Hardware: Quad Core ARM A73 @ 2.2 GHz, 2GB DDR4, Flash Memory 4GB eMMC
Connectivity:
1 x 10G/Multi-gigabit Copper (Configurable LAN/WAN)
1 x 2.5G/1G RJ-45 (WAN)
3 x 2.5G/1G RJ-45 (LAN)
1 x 10G/1G SFP+ (LAN)
Performance:
LAN-WAN Throughput: 2.4Gbps for 2.5G WAN port. 9.4Gbps for 10G WAN port
WAN-LAN Throughput: 10Gbps max WAN with 17.5Gbps max LAN, when using WAN2 port. 2.5Gbps max WAN with 27.5Gbps max LAN, when using WAN1 port only
LAN/VLAN:
Maximum Number of VLANs is 8
DHCP Server (limit is 8)
802.1Q VLAN
Security:
Firewall Traffic Rules/Scheduling, Port Forwarding, Port Triggering, Stateful Packet Inspection (SPI), Port/Service Blocking, Denial-of-service (DoS) Prevention, Stealth Mode, Block TCP Flood, Block UDP Flood, Respond To Ping on Internet Port
VoIP SIP ALG: Yes
Networking:
ISP Address Assignment DHCP, Static IP Assignment, PPPoE, NAT, Static Routing, Routing Protocol (RIPv1, RIPv2), MAC Address Cloning/spoofing, NTP Support, UPnP, Auto Uplink on Switch Ports
VPN: IPSec Site-to-Site
Encryption/Authentication: 3DES, AES (128, 192, 256 bit)/SHA-1, SHA-2 (256bit), MD5
Key Exchange: IKEv1, IKEv2, Pre-shared Key
Management Options: Insight Remote Cloud Management, Web GUI
Logging:
Accepted Packets, Dropped Packets Statistics, System, Source MAC filter, Session Limit, Bandwidth Limit, Ipsec VPN, Log Delivery Insight logging, Diagnostics Ping, DNS Lookup, Trace Route, Speed test, Maintenance Save/restore Configuration, Restore to Factory Defaults, Firmware Upgrades, Display and monitor Statistics
Major Regulatory Compliance Environment: RoHS
Safety: CE/LVD, CSA
EMI: FCC Part 15 Class B, CE mark
Operating Temperature: 0° to 40°C (32° to 104° F)
Storage Temperature: -20° to 70° C (-4° to 158° F)
Humidity: Operating humidity 90% maximum relative humidity, non-condensing,
Storage humidity 95% maximum relative humidity, non-condensing
Power: AC 100-240V, 50/60Hz, 1.3A
Electrical Specifications Power adapter input localized to regions
