Mikrotik

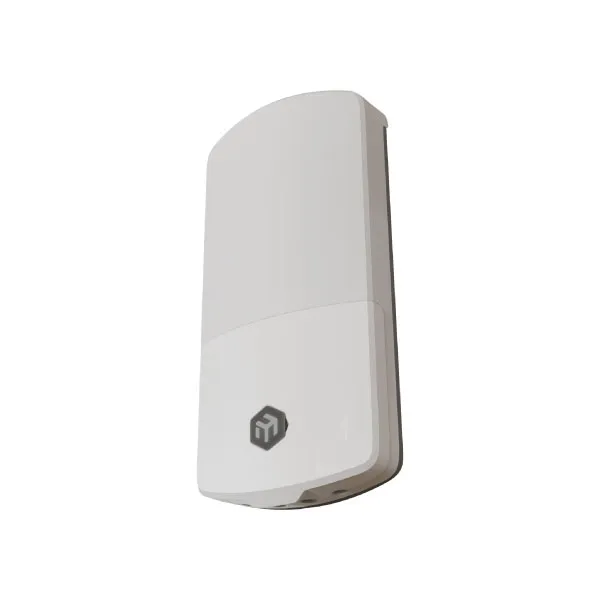

MikroTik wAP ax LTE7 Kit AX1800 WiFi 6 Outdoor LTE Router

Ask For Price

Stealthy design

PoE-In & DC jack

Gigabit Ethernet x 2

Powerful dual-band Wi-Fi 6 radio

Specifications

CPU: Dual-core IPQ-5010 800 MHz

CPU architecture: ARM 64bit

Size of RAM: 256 MB

RAM type: DDR3L

Storage: 128 MB NAND

Number of 1G Ethernet ports: 2

MiniPCIe slots: 1

Number of SIM slots: 1 micro SIM

Wireless interface model: IPQ-5010

Wireless: 2.4 GHz 802.11b/g/n/ax dual-chain, 5 GHz 802.11a/n/ac/ax dual-chain

Antenna gain: 6 dBi (2.4 GHz), 7 dBi (5 GHz)

LTE modem: R11e-LTE7

TAC: 35312597

LTE Category: 7 (DL: 300 Mbps; UL: 100 Mbps)

MIMO DL: 2x2

MIMO UL: 1x1

LTE FDD bands: 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) / 32 (1500 MHz)

LTE TDD bands: 38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz)

3G Category: R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)

3G bands: 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 8 (900 MHz)

Dimensions: 229 x 113 x 43 mm

Operating system: RouterOS v7, License level 4

Operating temperature: -30°C to +70°C

Powering

Number of DC inputs: 2 (DC-jack, PoE-In)

DC-jack input Voltage: 12-57 V

PoE-In input Voltage: 18-57 V

Power adapter nominal voltage: 24 V

Power adapter nominal current: 0.8 A

PoE-In: 802.3af/at

Max power consumption: 13 W
