1core AR9344 600 MHz CPU
128 MB of RAM
RouterOS L4
One x 1Gbps WAN; Four x 1Gbps LAN Ethernet ports

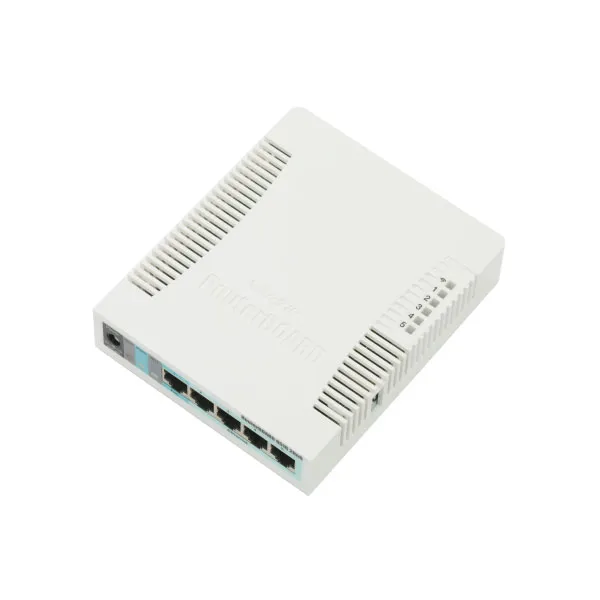

The RB951G-2HnD is a wireless SOHO Gigabit AP with a new generation Atheros CPU and more processing power. It has five Gigabit Ethernet ports,
one USB 2.0 port and a high power 2.4GHz 802.11b/g/n wireless AP with antennas built in.
In comparison with previous model RB751G-2HnD, it has more powerful 600Mhz CPU (instead of 400Mhz), more RAM - 128MB instead of 64MB,
same form factor and price. The device is very small and will look good in any home or office, wall mounting anchor holes are provided.
Specifications
Details
Product code: RB951G-2HnD
Architecture: MIPSBE
CPU: AR9344
CPU core count: 1
CPU nominal frequency: 600 MHz
Switch chip model: AR8327-BL1A
Dimensions: 113x138x29mm
RouterOS license: 4
Operating System: RouterOS
Size of RAM: 128 MB
Storage size: 128 MB
Storage type: NAND
MTBF: Approximately 100'000 hours at 25C
Tested ambient temperature: -20C .. +50C
Wireless capabilities
Details
Wireless 2.4 GHz Max data rate: 300 Mbit/s
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n
Antenna gain dBi for 2.4 GHz: 2.5
Wireless 2.4 GHz chip model: AR9344
Wireless 2.4 GHz generation: Wi-Fi 4
Ethernet
Details
10/100/1000 Ethernet ports: 5
Peripherals
Details
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB type A
Powering
Details
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 8-30 V
Max power consumption: 7 W
PoE in: Passive PoE
PoE in input Voltage: 8-30 V
Certification & Approvals
Details
Certification: FCC
IP: IP20
Other
Details
Beeper: Yes
Wireless specifications
2.4 GHz | Transmit (dBm) | Receive Sensitivity |
6MBit/s | 30 | -96 |
54MBit/s | 25 | -80 |
MCS0 | 30 | -96 |
MCS7 | 23 | -78 |
