1core QCA9533 650MHz CPU
32MB of RAM
RouterOS L4
One x 10/100 Mbps WAN; Two x 10/100 Mbps LAN Ethernet port

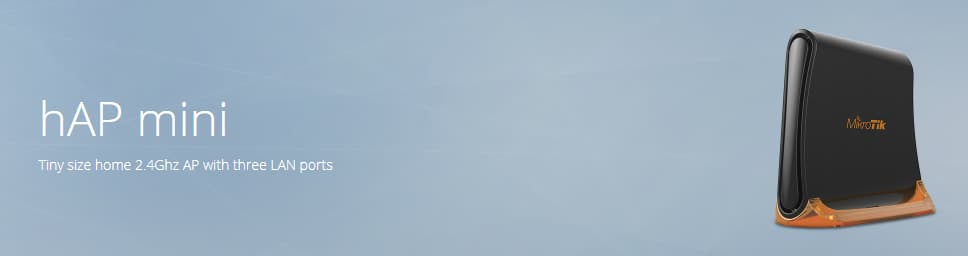

The hAP mini is a small 2GHz wireless access point for home or small offices. It has three ports, which are configured as one Internet port and two LAN ports,
but can be reconfigured as desired, using the powerful RouterOS configuration options.
The powerful 650MHz CPU gives you full access to the wide variety of features provided by the versatile RouterOS operating system, but if all you want is a
simple access point - it is already configured out of the box. You simply need to open it’s web configuration page and provide a password for it.
Specifications
Details
Product code: RB931-2nD
Architecture: SMIPS
CPU: QCA9533
CPU core count: 1
CPU nominal frequency: 650 MHz
Switch chip model: QCA9533-BL3A
Dimensions: 48 x 78 x 81mm
RouterOS license: 4
Operating System: RouterOS
Size of RAM: 32 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 100'000 hours at 25C
Tested ambient temperature: -20°C to 70°C
Wireless capabilities
Details
Wireless 2.4 GHz Max data rate: 300 Mbit/s
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n
Antenna gain dBi for 2.4 GHz: 1.5
Wireless 2.4 GHz chip model: QCA9533
Wireless 2.4 GHz generation: Wi-Fi 4
Ethernet
Details
10/100 Ethernet ports
Powering
Details
MicroUSB input Voltage: 5-5 V
Number of DC inputs: 1 (MicroUSB)
Max power consumption: 3.5 W
Cooling type: Passive
Certification & Approvals
Details
Certification: FCC, IC
IP: IP20
Wireless specifications
2.4 GHz | Transmit (dBm) | Receive Sensitivity |
1MBit/s | 22 | -96 |
11MBit/s | 22 | -89 |
6MBit/s | 20 | -93 |
54MBit/s | 18 | -74 |
MCS0 | 20 | -93 |
MCS7 | 16 | -71 |
