Mikrotik

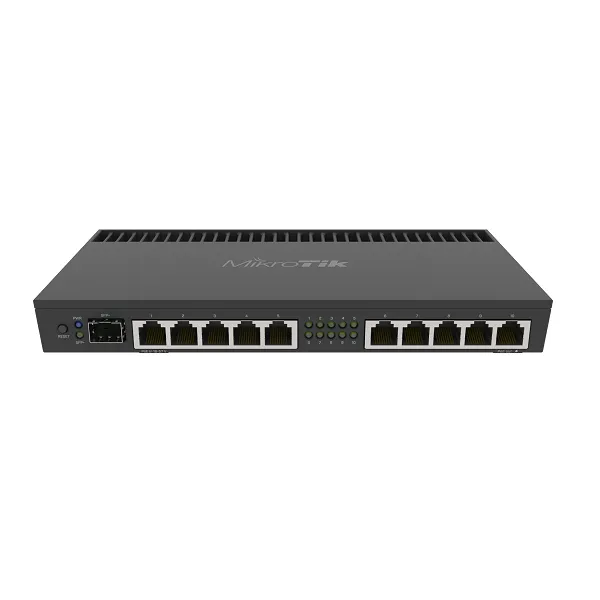

MIKROTIK RB4011iGS+RM ROUTER Powerful 10xGigabit port router with a Quad-core 1.4Ghz CPU, 1GB RAM, SFP+ 10Gbps cage and desktop case with rack ears

30000

4Core AL21400 auto(533-1900)MHz CPU
1GB of RAM
RouterOS L5
1U Rackmount
Ten x 1Gbps LAN/WAN Ethernet ports; One x SFP+

Mikrotik Ethernet Router

Quantity:

Description
Specification

RB4011iGS+RM
In addition to the ten 1 Gbps ethernet ports, an SFP+ port
provides optional 10 Gbps connectivity through an SFP+ module
(not included). All of this power, in a compact and professional
looking solid metal enclosure in matte black.
The ethernet model includes two rackmount ears, that will securely
fasten the unit in standard 1U rack space.

Specifications
Details
Product code: RB4011iGS+RM
Architecture: ARM 32bit
CPU: AL21400
CPU core count: 4
CPU nominal frequency: auto (533 - 1900) MHz
Switch chip model: RTL8367SB
Dimensions: 228 x 120 x 30 mm
RouterOS license: 5
Operating System: RouterOS v7
Size of RAM: 1 GB
Storage size: 512 MB
Storage type: NAND
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -40°C to 70°C
IPsec hardware acceleration: Yes

Powering
Details
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 12-57 V
Max power consumption: 33 W
Max power consumption without attachments: 18 W
Cooling type: Passive
PoE in: Passive PoE
PoE in input Voltage: 18-57 V

PoE-out
Details
PoE-out ports: Ether10
PoE out: Passive PoE up to 57V
Max out per port output (input 18-30 V): 600 mA
Max out per port output (input 30-57 V): 420 mA
Max total out (A): 600 mA

Ethernet
Details
10/100/1000 Ethernet ports: 10

Fiber
Details
SFP+ ports: 1

Peripherals
Details
Serial console port: RJ45

Other
Details
PCB temperature monitor: Yes
Voltage Monitor: Yes

Certification & Approvals
Details
Certification: CE, EAC, ROHS
IP: IP20
