Mikrotik

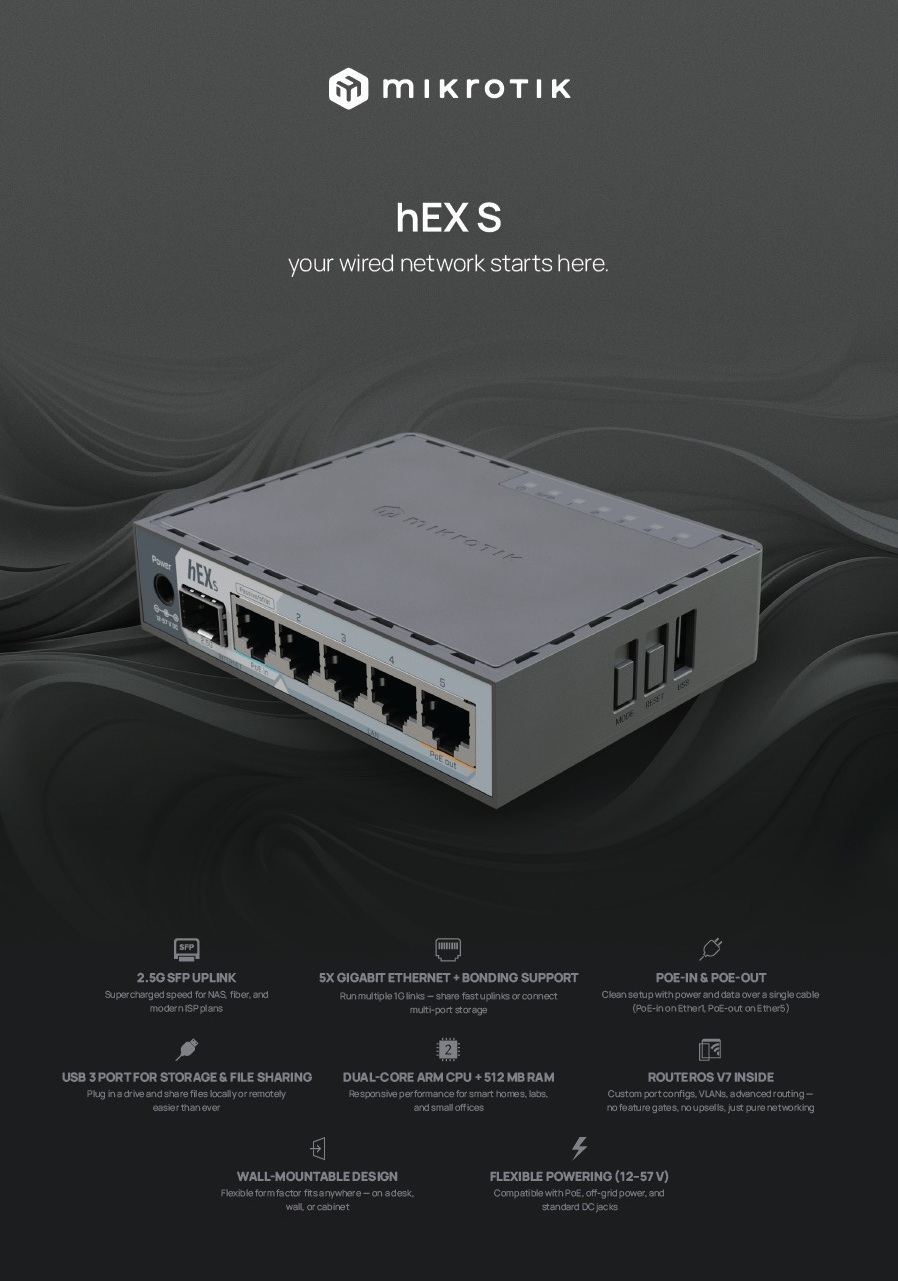

Mikrotik E60iUGS (hEX S) RouterBOARD Ethernet Router
Tk
11500
2Core 950MHz CPU
512MB of RAM
RouterOS L4
5 x 1G Ethernet ports + 1 x 2.5G SFP
Mikrotik Ethernet Router
Specifications
Product code: E60iUGS
Architecture: ARM 32bit
CPU: EN7562CT
CPU core count: 2
CPU nominal frequency: 950 MHz
CPU Threads count: 2
Switch chip model: EN7523
RouterOS license: 4
Operating System: RouterOS v7
Size of RAM: 512 MB
Storage size: 128 MB
Storage type: NAND
MTBF: Approximately 100'000 hours at 25C
Tested ambient temperature: -40°C to 70°C
Powering
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 12-57 V
Max power consumption: 23 W
Max power consumption without attachments: 5 W
PoE in: 802.3af/at
Cooling type: Passive
PoE in input Voltage: 18-57 V
PoE-out
PoE-out ports: Ether5
PoE out: Passive PoE up to 57V
Low voltage PoE-Out current limit: 0.5 A
High voltage PoE-Out current limit: 0.5 A
Ethernet
10/100/1000 Ethernet ports: 5
Number of 1G Ethernet ports with PoE-out: 1
Fiber
SFP ports: 1 (2.5G supported)
Peripherals
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB 3.0 type A
Max USB current (A): 1
Other
CPU temperature monitor: Yes
PCB temperature monitor: Yes
Voltage Monitor: Yes
Mode button: Yes
Certification & Approvals
Certification: CE, EAC, ROHS
IP: 20
