Tk
12500
Architecture: ARM 64bit
CPU: IPQ-6010
CPU core count: 4
CPU nominal frequency: 864 MHz
It’s time to supercharge your home network with the Generation 6 wireless network and our latest addition to the beloved hAP series. hAP ax² has everything you might need in a primary home access point – and more! Forget endless reviews and comparisons – this is the perfect device for 99% of homes.
Wireless signal is now stronger than ever. Here are the two main ingredients of hAP ax’s success: a state-of-the-art dual-band, dual-chain 4-4.5 dBi radio, and the 802.11ax standard with Wave2 support. Let’s compare it to the previous generation: depending on your overall setup, that means up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum!
Some might ask – why do we even need higher wireless speeds? Well, countless use cases have been previously impossible or difficult to pull off. For example, working with large media files over the wireless network – without the need to download and upload everything. Do you really have the time to wait? Grab a hAP ax² and save more time for the essential things in life!
The modern quad-core CPU running at 864 MHz combined with a solid GB of RAM packs a hefty punch when it comes to heavy operations like complex firewall rules, IPsec hardware encryption, using more threads or experimenting with the most advanced RouterOS features. And with the addition of WPA3 advanced encryption support, you’re safer than ever before.

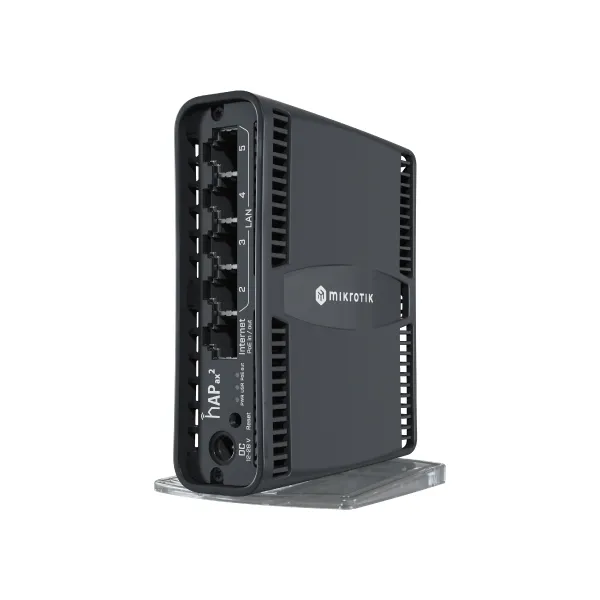

Like the previous models, hAP ax² can be mounted vertically, horizontally, or even on the wall – without sacrificing the strong signal.
With so many products and features on the market, even an experienced user can become confused. So it’s time for a simple truth for a simple choice: you can’t go wrong with a hAP ax² in most homes.
Specifications
Details
Product code: C52iG-5HaxD2HaxD-TC
Architecture: ARM 64bit
CPU: IPQ-6010
CPU core count: 4
CPU nominal frequency: 864 MHz
Switch chip model: IPQ-6010
RouterOS license: 4
Operating System: RouterOS v7
Size of RAM: 1 GB
Storage size: 128 MB
Storage type: NAND
MTBF: Approximately 100'000 hours at 25C
Tested ambient temperature: -40°C to 50°C
IPsec hardware acceleration: Yes
Wireless capabilities
Details
Wireless 2.4 GHz Max data rate: 574 Mbit/s
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz: 4
Wireless 2.4 GHz chip model: QCN-5022
Wireless 2.4 GHz generation: Wi-Fi 6
Wireless 5 GHz Max data rate: 1200 Mbit/s
Wireless 5 GHz number of chains: 2
Wireless 5 GHz standards: 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz: 4.5
Wireless 5 GHz chip model: QCN-5052
Wireless 5 GHz generation: Wi-Fi 6
WiFi speed: AX1800
Ethernet
Details
10/100/1000 Ethernet ports: 5
Number of 1G Ethernet ports with PoE-out: 1
Powering
Details
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 12-28 V
Max power consumption: 27 W
Max power consumption without attachments: 12 W
Cooling type: Passive
PoE in: Passive PoE
PoE in input Voltage: 18-28 V
PoE-out
Details
PoE-out ports: Ether 1
PoE out: Passive PoE
Max out per port output (input 18-30 V): 600 mA
Max total out (A): 0.6 A
Total output current: 0.6
Total output power: 16.8W
Certification & Approvals
Details
Certification: CE, FCC, IC, EAC, ROHS
IP: 20
Other
Details
CPU temperature monitor: Yes
Mode button: Yes
Wireless specifications
2.4 GHz | Transmit (dBm) | Receive Sensitivity |
1MBit/s | 27 | -100 |
11MBit/s | 27 | -94 |
6MBit/s | 27 | -96 |
54MBit/s | 25 | -80 |
MCS0 | 27 | -96 |
MCS7 | 24 | -75 |
MCS9 | 22 | -70 |
MCS11 | 20 | -67 |
5 GHz | Transmit (dBm) | Receive Sensitivity |
6MBit/s | 26 | -96 |
54MBit/s | 23 | -80 |
MCS0 | 26 | -96 |
MCS7 | 22 | -75 |
MCS9 | 20 | -70 |
MCS11 | 18 | -67 |
