G&G

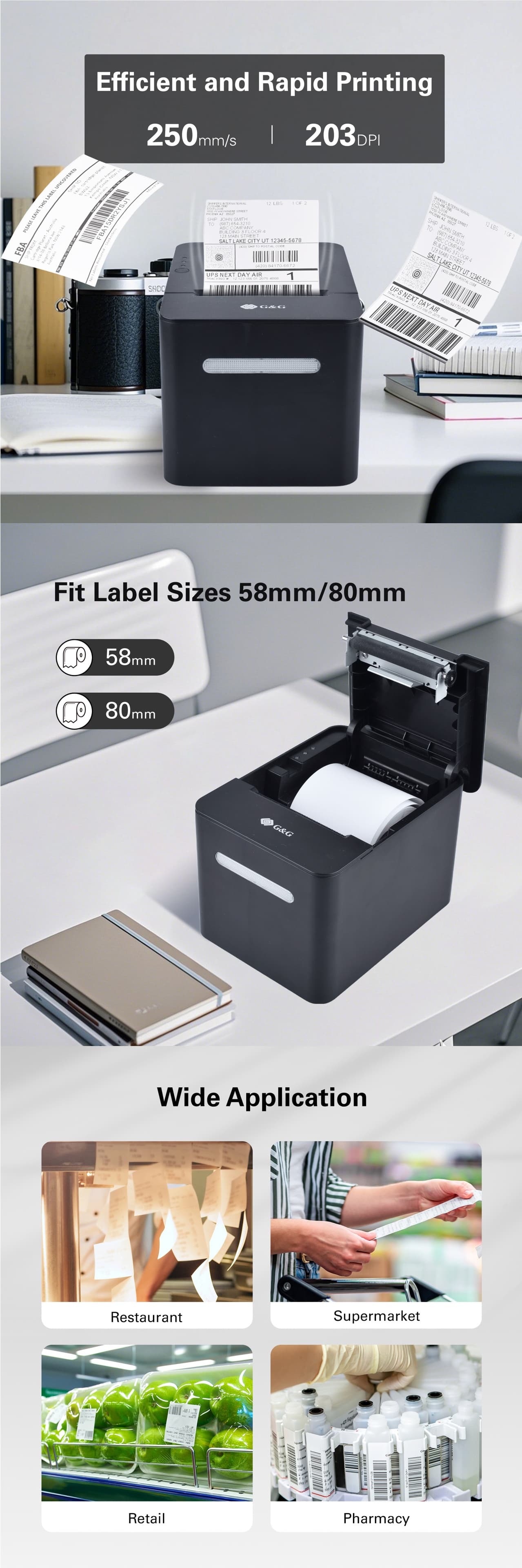

G&G TD80UE Desktop Thermal Receipt Printer with USB/ETHERNET Port
Tk
6500
Printing Speed: 250mm/s
Paper Width: 58mm & 80mm
Resolution: 203dpi
USB + Ethernet Interface
IP54
Wall Mount Design
Thermal Printer
· Extra-large paper compartment supports 58&80mm printing widths
· Optional sound and light alarm function, ideal for noisy environments
· IP54-rated waterproof and dustproof design, extending printer lifespan
· Wall-mountable to save space
Resolution: 203 dpi
Printing Method: Direct Thermal
Interface: USB + Ethernet
Emulation: ESC/POS
Sensor: Open cover sensor/missing Paper sensor/Paper detection sensor
Print Speed: 250mm/s (Max)
Printing Width: 72mm (Max)
FLASH: FLASH 8MB（expandable）
Bar code Format:
Code128、EAN128、ITF、Code39、Code93、EAN13、EAN13+2、EAN13+5、EAN8、EAN8+2、EAN8+5、CodeBar、Postnet、UPC-A、UPC-A+2、UPC-A+5、UPC-E、UPC-E+2、UPC-E+5、MSI、MSIC、PLESSEY、CPOST、ITF14、EAN14、Code11
Two-dimensional code format: QR code、PDF417、Micro PDF 417、DataMatrix、AZTEC
Character Enlargement/rotation: 1-10x magnification /0°, 90°, 180°, 270° rotation/mirror printing
Character: GB18030、BIG5、ASCII
Extended Character:
PC437、Katakana、PC850、PC860、PC863、PC865、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866、PC852、PC858、IranII、Latvian、Arabic、PT151、PC747、WPC1257
Character Size: 9x17dot, 12x24dot, 24x24dot
Paper Type: Thermal Receipt Paper
Roll Width (including backing Paper): 79.5mm±0.5mm
Roll Thickness (including backing Paper): 0.06~0.08mm
Roll Outside Diameter: 80mm（OD）
FEED: Feed sheet
Power:
Input Power Supply: AC100 〜240V
Output Power: DC 24V~2.5A
Working Environment:
Operating Temperature: 5~40°C
Operating Humidity: 25~85%
Storage Environment:
Storage Temperature: -10~60℃
Storage Humidity: 10~90%
Print Head Life: 150km
Cutter Life: 1.5 million times
Dimension: 180 * 135 * 125 mm
Weight: 930g
Accessories (Standard)
1. Power adapter
2. Power cord
3. USB cable
4. Quick Installation Guide
5. Paper roll baffle
Certification:
CCC, CE, RoHS, REACH, TELEC (Japan), EAC (Russia), FAC (Russia), SRRC, BIS (India)
