Resolution: 203 dpi
Printing Method: Direct Thermal & Thermal Transfer
Print Specs: Max print speed: 152 mm/s | Max print width: 108 mm
Physical Specs:
Dimensions (WxHxD): 274 x 213 x 191 mm / 11.26x6.65x8.78 inch
Weight: 2.5 kg / 5.18 lb
Memory: 8MB SDRAM
Processor: arm cortex-M3
Connectivity Options: USB2.0, serial port (optional), Ethernet (optional)
Power: Input: AC100-240V, 50-60HZ | Output: DC 24V, 2.5A, 60W

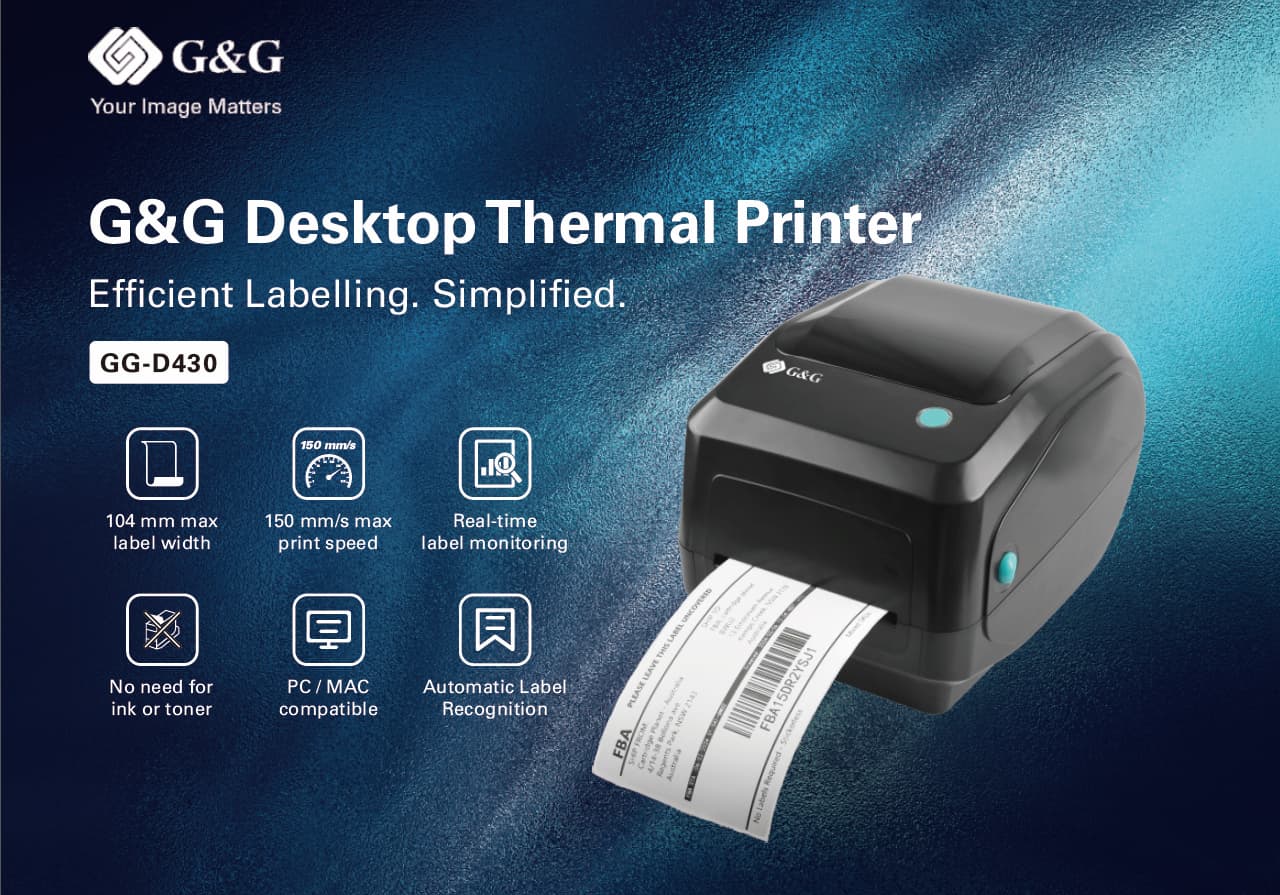

In the box: GG-D430 label printer, Quick start guide, USB cable, Power cord
Sensors: Transmissive gap sensor, Adjustable black mark reflective sensor, Head open sensor, Paper shortage sensor
Fonts & Graphics: Edit labels using fonts and graphics on your software
Barcode:
Code39, Code93, Code128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-13, EAN-14, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POS, ITF14 ect.
Font & Barcode Rotation: 0, 90, 180, 270 degree
Printer Language: Compatible to TSPL, ZPL, EPL, DPL, CPCL
Media Type: black mark paper, continuous, continuous receipt paper, die-cut, fan-fold, perforated paper, receipt paper, roll-fed, wristbands, coated paper label
Media Specs:
Width: 20-118 mm / 0.79-4.65 inch | Thickness: 0.06-0.18 mm / 0.002-0.007 inch
Core diameter: 25.4-38 mm / 1-1.5 inch | Label length: 10-300 mm / 0.39-11.81 inch
Environment:
Operation: 5~40° C / 41-104° F, 25~85% non-condensing
Storage: -10-60° C / 14-140° F, 10~90% non-condensing
Safety: CE, CCC
Environmental Concern: ROHS, REACH
Print Head Life: 150 km (12.5% print coverage)
