AFox

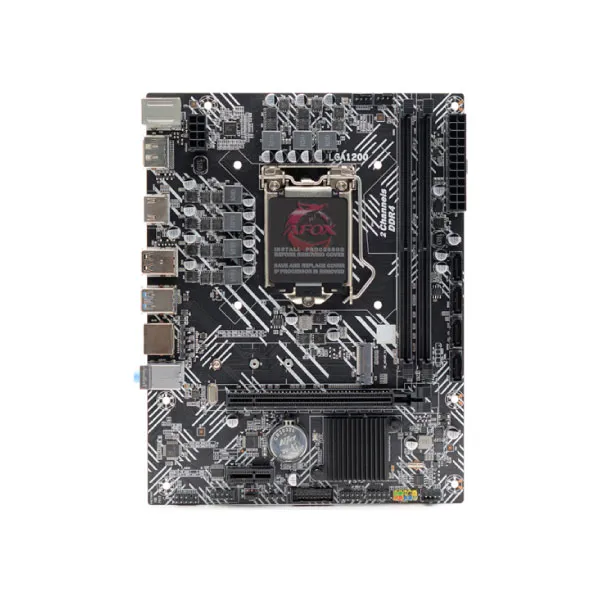

AFOX IH510D4-MA Intel Micro ATX Motherboard

9500

INTEL Socket 1200

Intel® H510

Intel Core™ i3 / Core™ i5 / Core™ i7 / Core™ i9 Processors Supports

3 years warranty

• INTEL Socket 1200

• Intel® H510

• Intel Core™ i3 / Core™ i5 / Core™ i7 / Core™ i9 Processors Supports • Intel 10th /11th Generation (CPU up to 125 watts)

• FSB 2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) / 3200(O.C.) MHz

• Dual Channel DDR4 2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) / 3200(O.C.) MHz 1.2V

• 2 x Memory Slots (Max. capacity of system memory 64GB)

• Intel® HD Graphics

• 1 x PCI Express x16 4.0 slot, 1 x PCI Express x1 slot

• 4 x SATA III

• 1 x M.2 (PCIe NVMe Gen3 x4)

• Realtek 662 on board, Supports 6-channel audio-out

• Realtek RTL8111 Gigabit Ethernet on board Wake-On-LAN

• 1 x HDMI Port

• 1 X DP Port

• 1 x PS/2 Mouse Port

• 1 x PS/2 Keyboard Port

• 2 x USB 3.0 Ports

• 4 x USB 2.0 Ports

• 1 x RJ-45 LAN Port

• 3 x HD Audio Jacks (Line in / Front Speaker / Microphone)

• 3 years warranty
