AFox

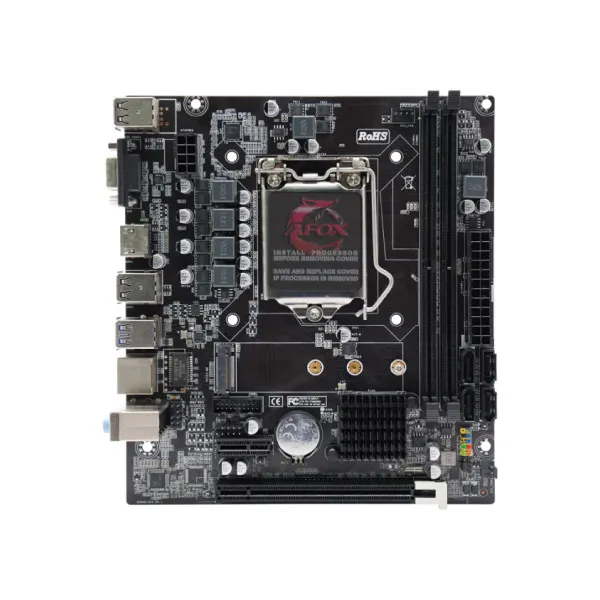

AFOX IH310CD4-MA2 Intel Micro ATX Motherboard

8000

INTEL Socket 1151

Intel® 310C

Intel Core™ i7 / Core™ i5 / Core™ i3 Processors

3 years warranty

• INTEL Socket 1151

• Intel® 310C

• Intel Core™ i7 / Core™ i5 / Core™ i3 Processors

• Supports Intel 6th, 7th, 8th and 9th Generation (CPU up to 95 watts)

• FSB 2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) MHz

• Dual Channel DDR4 2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) MHz

• 2 x Memory Slots (Max. capacity of system memory 64GB)

• Intel® HD Graphics

• 1 x PCI Express x16 3.0 slot

• 1 x PCI Express x1 slot

• 4 x SATA3 1 x M.2 (1 x PCIe NVMe Gen3 x4 )

• Realtek 897 on board, Supports 6-channel audio-out

• Realtek RTL8111 Gigabit Ethernet on board Wake-On-LAN

• 1 x HDMI Port

• 1 x D-Sub (VGA) Port

• 2 x USB 3.0 Ports

• 4 x USB 2.0 Ports

• 1 x RJ-45 LAN Port with LED

• 3 x HD Audio Jack (Line in / Front Speaker / Microphone)

• 3 years warranty
