AFox

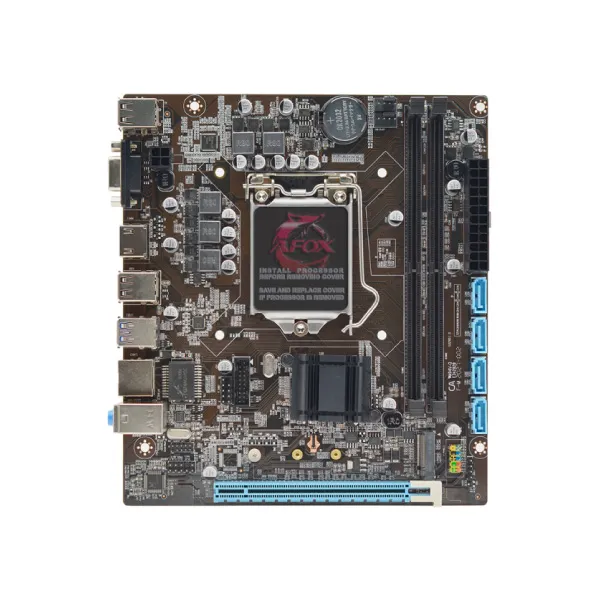

AFOX IH110D4-MA5 INTEL IH110D4-MA5 MICRO ATX MOTHERBOARD
Out Of Stock
3 x SATA3
1 x M.2 (PCIe NVMe Gen3 x4 )
1 x D-Sub (VGA) Port
1 x HDMI port
3 Years Warranty
Motherboard
INTEL Socket 1151
Supports Intel Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors
Supports Intel 6th, 7th, 8th and 9th Generation (CPU up to 95 watts)
Dual channel DDR4, two memory slots 2133 / 2400 / 2666MHz Memory up to 64GB
High quality audio special capacitor+independent audio block LED isolation line
3 x SATA3
1 x M.2 (PCIe NVMe Gen3 x4 )
1 x D-Sub (VGA) Port
1 x HDMI port
4 x USB 2.0 port
2 x USB 3.0 port
1 x RJ-45 LAN Port with LED
3 x HD Audio Jacks (Line in / Front Speaker / Microphone)
Platform: INTEL Socket 1151
Model Name: IH110D4-MA2
Chipset: Intel® H110
CPU Supports:
Intel Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors
Supports Intel 6th, 7th, 8th and 9th Generation (CPU up to 95 watts)
FSB: 2133 / 2400 / 2666 MHz
Memory: Dual Channel DDR4 2133 / 2400 / 2666(O.C.) MHz
Dimm: 2 x Memory Slots (Max. capacity of system memory 32GB)
Onboard Graphics: Integrated Graphics Processor-Intel® HD Graphics support
PCI/PCI-E Slots: 1 x PCI Express x16 3.0 slot
SATA: 4 x SATA3, 1 x M.2 (PCIe NVMe Gen3 x4 )
IDE: N/A
Audio: Realtek 662 on board, Supports 6-channel audio-out
LAN: Realtek RTL8111 1000Mbps Ethernet on board
Back Panel I/Os:
1 x HDMI Port
1 x D-Sub (VGA) Port
2 x USB 3.0 Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port with LED
3 x HD Audio Jacks (Line in / Front Speaker / Microphone)
ON-Board Pinheaders/Connectors:
1 x USB 2.0 pinheader (supports additional 2 USB 2.0s), 1 x USB 3.0 pinheader (supports additional 2 USB 3.0s)
1 x Front Panel Audio pinheader
1 x LPC DEBUG
BIOS: UEFI BIOS
Form Factor: Micro-ATX (17*19cm)
Mounting: 4 mounting holes
Accessories:
1 x SATA II cable
1 x I/O Rear Panel
1 x User Manual
1 x Driver CD
